Removing Coolant Temperature Sensor
- Remove crankcase vent line at the oil-filter housing.
- 1.1. Unscrew external Torx screw (E10, M6 x 20) -1-
for the crankcase vent line on the oil-filter housing.
- 1.2. Release crankcase vent line -2-
and pull it off the engine ventilation cover on the cylinder head.
- 1.3. Pull crankcase vent line -3-
out of the oil-filter housing and lay it aside.
- 1.4. Check O-rings and replace them if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

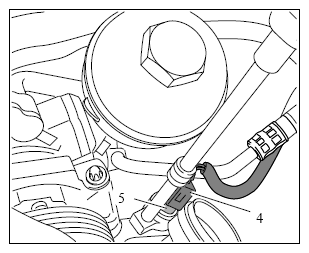

- Remove coolant temperature sensor.
- 2.1. Disconnect cable plug -4-
.
- 2.2. Loosen and unscrew coolant temperature sensor -5-
using the crow-foot wrench Nr.189-1
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
