Removing Right Radiator

Unscrew two M6 hexagon-head bolts -2-  and remove the transverse strut -1-  .

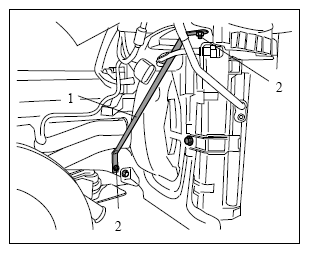

Fig 1: Identifying Wheel Housing Transverse Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Unscrew M6 external Torx screw (E10) -2-  .
2. 2.2. Move control unit -1-  and holder into position.
3. 2.3. Release and disconnect cable plug -3-  for fan motor.

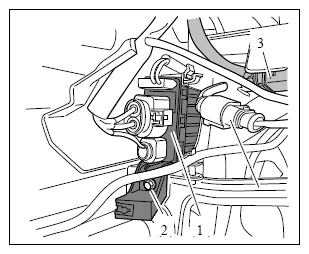

   Fig 2: Identifying Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Let the fluid cool down.

→ Wear personal protective gear.

Release spring clamps -arrows-  at the Henn couplings and pull off coolant hoses -1-  .

Make sure that the spring clamps -arrows-  are not overstretched.

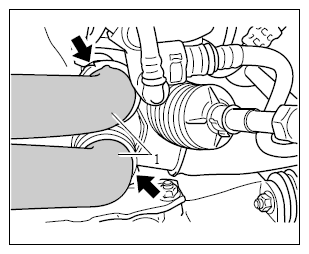

Fig 3: Locating Radiator Coolant Hoses

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Unscrew two M8 collar nuts -1-  .
2. 4.2. Disconnect plug-in coupling -2-  by pressing the locking lugs and pull off the vent line.
3. 4.3. Unscrew two hexagon-head bolts (M8 x 25) -3-  and remove the left radiator module.
   Fig 4: Identifying Right Radiator Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

1. 5.1. Loosen the hose holder.

   Unscrew external Torx screw (E10, M6 x 16) -arrow  on the hose holder.

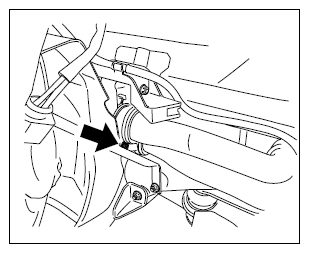

   Fig 5: Locating Hose Holder Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Disconnect both coolant hoses from the connection pieces at the radiator.

   Loosen the spring band clamps -arrows-  and pull the coolant hoses off the connection pieces.

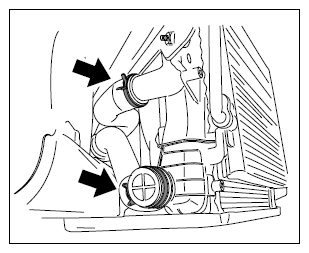

   Fig 6: Locating Radiator Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 5.3. Unclip sheetmetal clips.

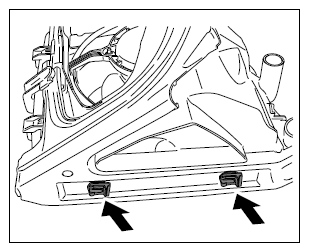

   Fig 7: Locating Sheetmetal Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 5.4. Remove the cooling fan housing.
   1. 5.4.1. Unscrew two M6 hexagon-head tapping screws -1-  .
   2. 5.4.2. Remove the cooling fan housing and rear air guide from the tabs on the side radiator -2-  .

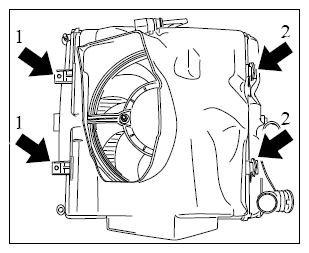

   Fig 8: Locating Cooling Fan Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
