Removing Left Radiator

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

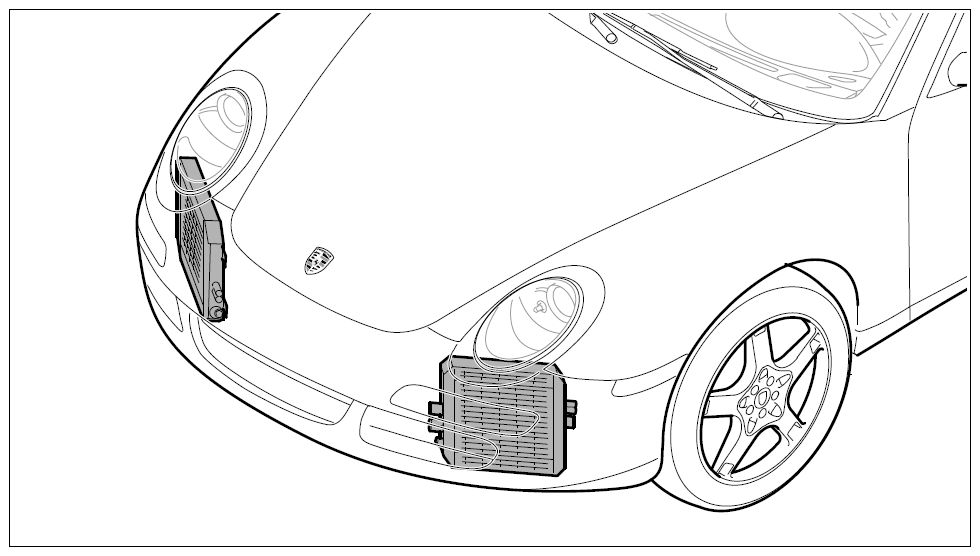

Fig 1: Identifying Radiator Installation Positions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove transverse strut.

   Unscrew two M6 hexagon-head bolts -2-  and remove the transverse strut -1-  .

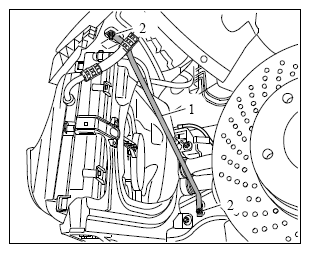

   Fig 2: Identifying Left Transverse Strut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Disconnect cable plug for fan motor.

   Release and disconnect cable plug -arrow-  .

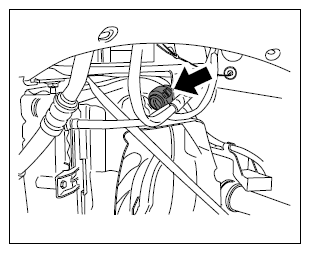

   Fig 3: Locating Cable Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Hot fluid

   • Danger of scalding

   → Let the fluid cool down.

   → Wear personal protective gear.

   Information

   Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

3. Disconnect coolant hoses.

   Release spring clamps -arrows-  at the Henn couplings and pull off coolant hoses -1-  .

   Make sure that the spring clamps -arrows-  are not overstretched.

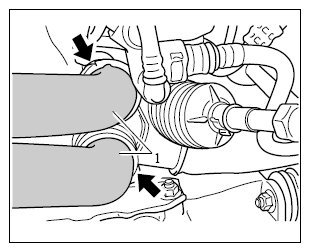

   Fig 4: Locating Radiator Coolant Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove left radiator module.
   1. 4.1. Unscrew two M8 collar nuts -1-  .
   2. 4.2. Disconnect plug-in coupling -2-  by pressing the locking lugs and pull off the vent line.
   3. 4.3. Unscrew two hexagon-head bolts (M8 x 25) -3-  and remove the left radiator module -4-  .
      Fig 5: Identifying Left Radiator Module

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

5. Remove the cooling fan housing.
   1. 5.1. Loosen the hose holder.

      Unscrew external Torx screw (E10, M6 x 16) -arrow-  on the hose holder.

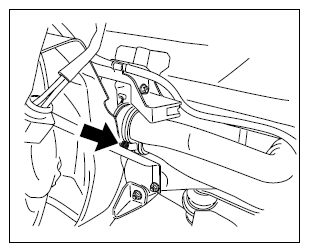

      Fig 6: Locating Hose Holder Mounting

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 5.2. Disconnect both coolant hoses from the connection pieces at the radiator.

      Loosen the spring band clamps -arrows-  and pull the coolant hoses off the connection pieces.

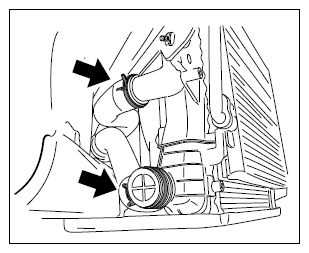

      Fig 7: Locating Radiator Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 5.3. Unclip sheetmetal clips.

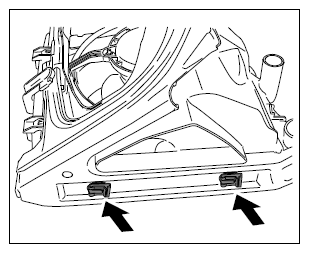

      Fig 8: Locating Sheetmetal Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 5.4. Remove the cooling fan housing.
      1. 5.4.1. Unscrew two M6 hexagon-head tapping screws -1-  .
      2. 5.4.2. Remove the cooling fan housing and rear air guide from the tabs on the side radiator -2-  .

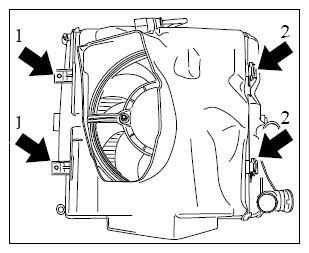

   Fig 9: Locating Cooling Fan Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
