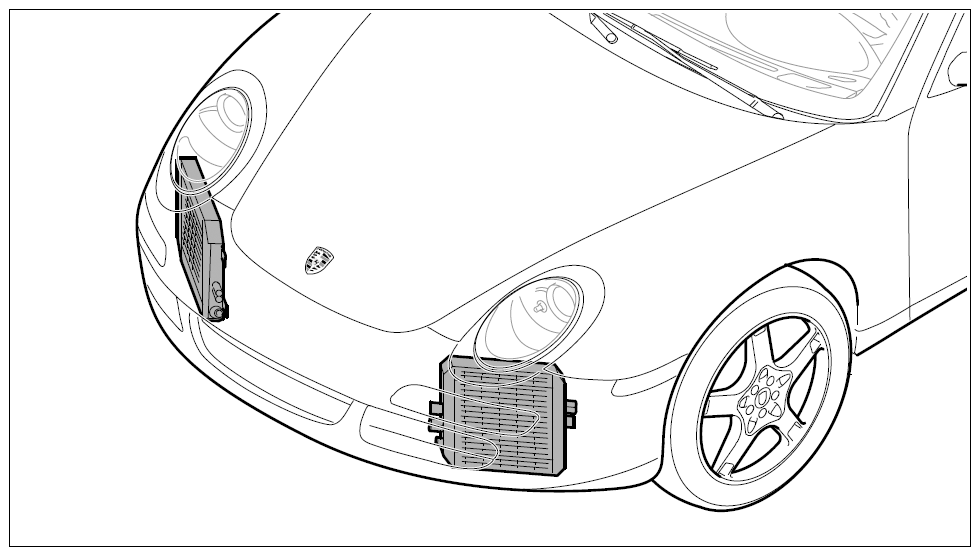

Installing Left Radiator

1. 1.1. Insert and secure the cooling fan housing.
   1. 1.1.1. Insert the cooling fan housing and rear air guide into the tabs on the side radiator -2-  .
   2. 1.1.2. Screw in and tighten two M6 hexagon-head tapping screws -1-  .

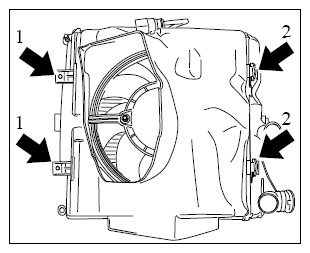

      Fig 2: Locating Cooling Fan Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in sheetmetal clips.

   Slide radiator module into the radiator bracket.

   Ensure that the radiator is seated correctly in the lateral guide and the lower bores.

   Fit washers and sheetmetal clips on the lower fastening pins for the radiator so that the sheetmetal clips engage correctly in the pins -arrows-  .

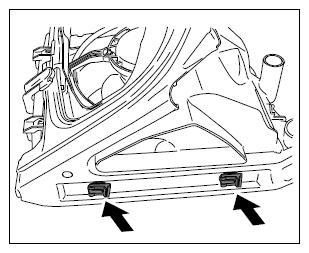

   Fig 3: Locating Sheetmetal Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Connect both coolant hoses to the connection pieces on the radiator.

   To do this, slide the coolant hoses onto the connection pieces and secure with spring-band clamps -arrows-  .

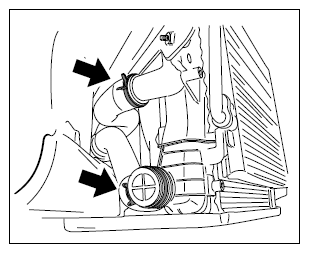

   Fig 4: Locating Radiator Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Secure the hose holder.

   Screw in and tighten external Torx screw (E10, M6 x 16) -arrow-  on the hose holder.

   → Tightening torque: 10 Nm (7.5 ft. lb.)

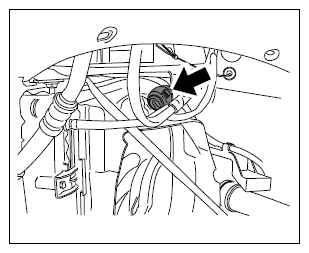

   Fig 5: Locating Hose Holder Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Insert the left radiator module -4-  and fit and tighten two hexagon-head bolts (M8 x 25) -3-  .

   → Tightening torque: 23 Nm (17 ft. lb.)

2. 2.2. Connect the vent line -2-  to the connection piece for the radiator module.
3. 2.3. Fit and tighten two M8 collar nuts -1-  .

   → Tightening torque: 23 Nm (17 ft. lb.)

Fig 6: Identifying Left Radiator Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connect coolant hoses -1-  to the coolant connection piece and secure with spring clamps -arrows-  on the Henn couplings.

Make sure that the Henn coupling locks with an audible click.

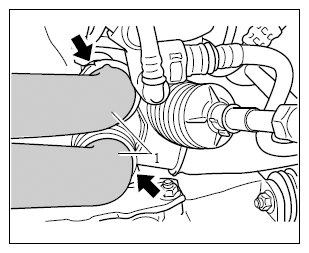

Fig 8: Locating Radiator Coolant Hoses

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

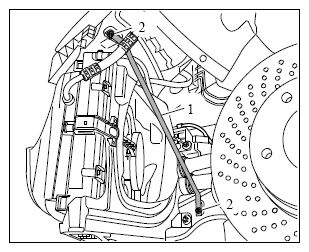

Fig 9: Identifying Wheel Housing Transverse Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove transverse strut -1-  and screw in and tighten M6 hexagon-head bolts -2-  .

→ Tightening torque: 10 Nm (7.5 ft. lb.)
