Installing Dirt Deflector

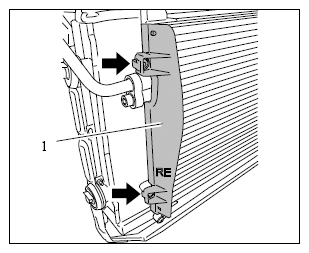

1. Fit dirt deflector -1-  at the left or right of the radiator. Observe marking (LI or RE) for left or right.
   1. 1.1. The lugs -arrows-  must engage perfectly (view of right side of radiator).
      Fig 1: Installing Right Dirt Deflector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

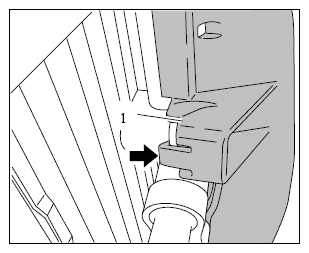

   2. 1.2. Pull to check that it is secure -arrow-  .
      Fig 2: Locating Dirt Deflector Lug

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

View from the front: Dirt deflector -1- installed.

Fig 3: Identifying Dirt Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
