WM 195919 Removing And Installing Unit Carrier (Coolant Distributor Housing) (Except Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Information

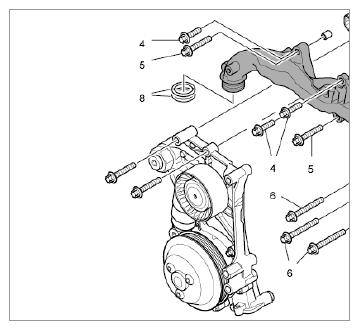

Fig 1: Overview Of Coolant Distributor Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unit carrier (coolant distributor housing)
2. Coolant flange
3. Bracket for coolant pump
4. External Torx screw, M8 x 35
5. External Torx screw, M8 x 50
6. External Torx screw, M8 x 70
7. Seals
8. O-rings
