Removing Coolant Distributor Housing

1. 1.1. Remove coolant flange -5-  .

   Unscrew screw -4-  on cable rail.

   Unscrew screws -3-  and remove cooling water flange -5-  .

2. 1.2. Unscrew screws -1-  on the unit carrier and remove component.

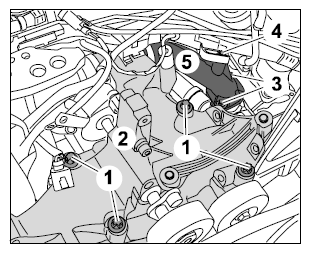

   Fig 1: Identifying Unit Carrier Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. 2.1. Loosen coolant supply hose. To do this, loosen the spring clamp -1-  on the Henn coupling and pull off coolant hose -2-  .

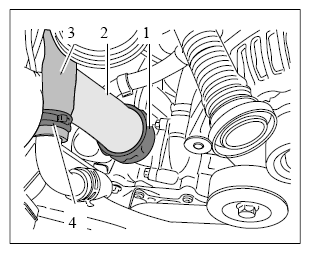

   Fig 2: Identifying Coolant Supply Hose And Henn Coupling

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Disconnect coolant hoses.

   Loosen spring band clamps -2, 5-  and pull off coolant hoses -3, 4-  .

   Fig 3: Identifying Upper Coolant Distributor Housing And Coolant Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Secure components to prevent them from falling down.

→ Secure components to prevent them from falling down.

→ 103019 REMOVING AND INSTALLING ENGINE CARRIER .

Support the engine with a transmission jack and Retainer Plate 9592  .

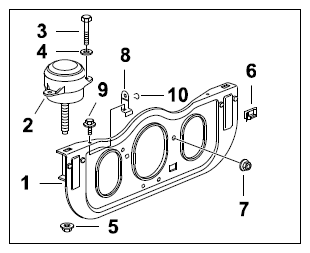

Fig 4: Identifying Engine Carrier Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 217820 REMOVING AND INSTALLING OIL RETURN LINE .

1. 4.1. Remove oil return line 4-6.

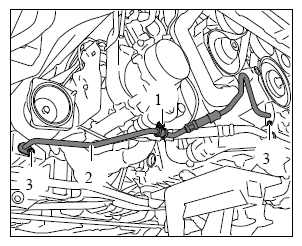

   Fig 5: Identifying Oil Return Line (4-6)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Remove oil return line 1-3.
   Fig 6: Identifying Oil Return Line (1-3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully press off distributor housing -1-  and remove it.

Fig 7: Identifying Coolant Distributor Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
