Installing Coolant Distributor Housing

Information

• Replace O-rings.
• Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

1. 1.1. Replace sealing rings -6 and 7-  .
2. 1.2. Fit coolant distributor housing and press it into the joining socket.

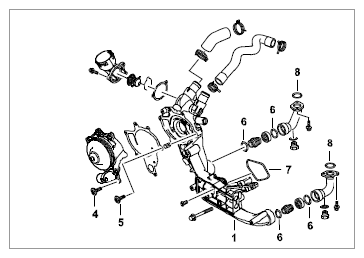

   Fig 1: Overview Of Coolant Distributor Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1  - Coolant distributor housing
   2. 4  - Screw
   3. 5  - Screw
   4. 6  - Sealing ring
   5. 7  - Sealing ring
   6. 8  - Sealing ring

→ 217820 REMOVING AND INSTALLING OIL RETURN LINE .

1. 2.1. Install oil return line 4-6.

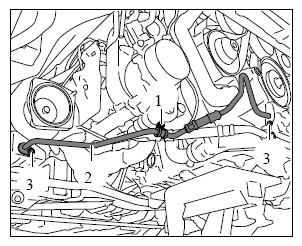

   Fig 2: Identifying Oil Return Line (4-6)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Install oil return line 1-3.
   Fig 3: Identifying Oil Return Line (1-3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ 103019 REMOVING AND INSTALLING ENGINE CARRIER .

1. 3.1. Support the engine with a transmission jack and Retainer Plate 9592  .

   → Tightening torque: 85 Nm (63 ft. lb.)

   → Tightening torque: 65 Nm (48 ft. lb.)

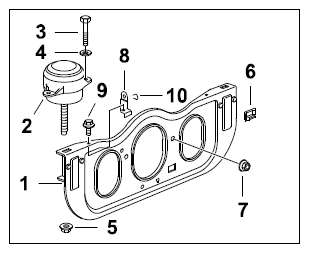

   Fig 4: Identifying Engine Carrier Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Replace O-rings.
• Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

1. 4.1. Replace all sealing rings.
   Fig 5: Identifying Unit Carrier Sealing Rings

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Fit unit carrier -2-  and screw in and tighten screws.
3. 4.3. Position coolant flange -5-  and screw in and tighten screws -3-  .

   → Tightening torque: 10 Nm (7.5 ft. lb.)

4. 4.4. Screw in and tighten screw -4-  on cable rail.

   → Tightening torque: 10 Nm (7.5 ft. lb.)

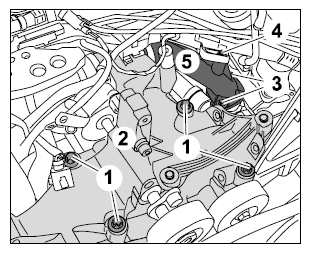

   Fig 6: Identifying Unit Carrier Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
