WM 195919 Removing And Installing Coolant Distributor Housing (Turbo Coupe, Turbo CABRIO & Gt2): Information: Overview

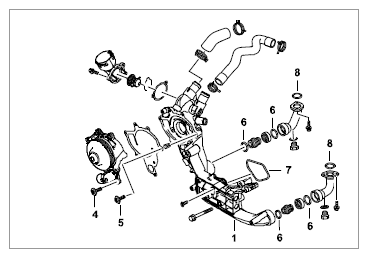

Fig 1: Overview Of Coolant Distributor Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1  - Coolant distributor housing
2. 4  - Screw
3. 5  - Screw
4. 6  - Sealing ring
5. 7  - Sealing ring
6. 8  - Sealing ring
