Component Overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Torx screws, M6 x 50
- Coolant regulator housing
- Torx screw, M6 x 40
- Seal for inside of coolant regulator
- Seal for outside of coolant regulator
- Coolant regulator
- Seal for coolant regulator housing
- Loosen spring band clamp -4-
and pull off coolant hose -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew M6 x 40 Torx screw -3-
.
- Unscrew three M6 x 50 Torx screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

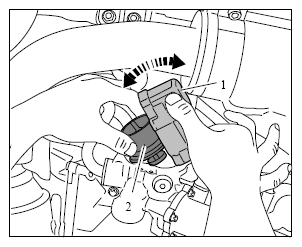

- Turn coolant regulator housing -1-
to the right and remove coolant regulator -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
