Removing Coolant Regulator

Information

• Collect emerging coolant in a suitable pan.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Disconnect coolant hoses -1-  from the coolant regulator housing.
   1. 1.1. Loosen screw-type clamps -2-  .
   2. 1.2. Remove spring clamp -3-  from the Henn coupling and pull off coolant hose.

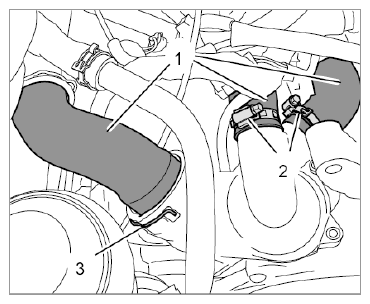

      Fig 1: Identifying Coolant Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove cover on coolant regulator housing -1-  .
   1. 2.1. Unscrew three hexagon socket head bolts (M6 x 35, a/f 5) -2-  on the housing cover.
   2. 2.2. Pull housing cover out of the coolant hoses.
   3. 2.3. Remove housing cover with coolant regulator.

      Be careful with the coolant regulator!

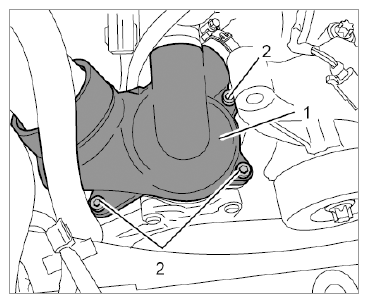

      Fig 2: Identifying Coolant Regulator Housing Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove coolant regulator -1-  from the housing cover.

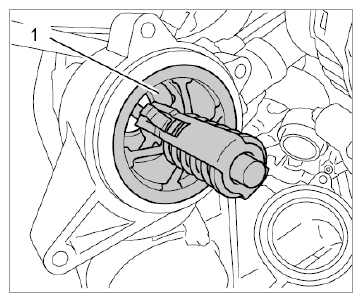

   Fig 3: Identifying Coolant Regulator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Replace O-ring -1-  in the housing cover.

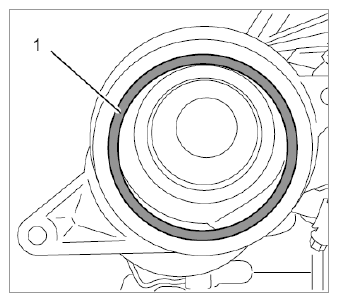

   Fig 4: Identifying Housing Cover O-Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
