Installing Coolant Regulator

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Information

• The coolant hoses must lock with an audible click when pushed into the plug-in couplings.

Information

• Check O-rings on the plug-in couplings and replace them if necessary.
• Clean plug connection and coolant hoses before assembly.
• Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
• Remove stoppers before fitting the coolant lines and hoses.

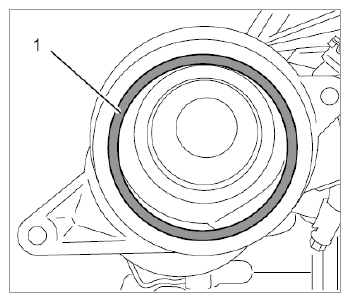

1. Fit new O-ring -1-  in the housing cover.
   1. 1.1. Lightly grease O-ring with the specified lubricant.
      Fig 1: Identifying Housing Cover O-Ring

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

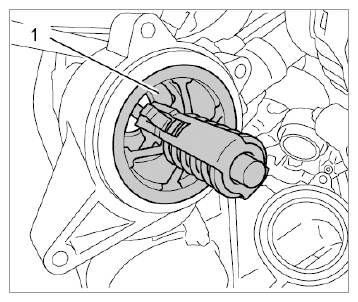

2. Position coolant regulator -1-  in the housing cover.
   Fig 2: Identifying Coolant Regulator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

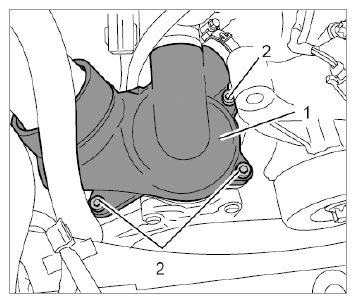

3. Fit housing cover -1-  with coolant regulator.
   1. 3.1. Fit adapter in the coolant hoses and guide the coolant regulator into the housing at the same time.
   2. 3.2. Align the housing cover on the housing flange and secure with three hexagon socket head bolts (a/f 5, M6 x 35) -2-  .
   3. 3.3. Tighten hexagon socket head bolts.

      → Tightening torque: 10 Nm (7.5 ft. lb.)

      Fig 3: Identifying Coolant Regulator Housing Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

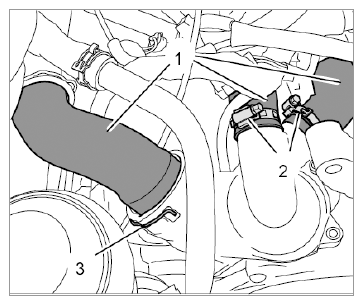

4. Secure the coolant hoses.
   1. 4.1. Tighten two screw-type clamps.

      → Tightening torque: 3 Nm (2 ft. lb.)

   2. 4.2. Fit spring clamp -3-  on the Henn coupling.
   3. 4.3. Position coolant hose with O-ring and fit it into the Henn coupling.
   4. 4.4. Pull on the hose to check that it is seated correctly.
      Fig 4: Identifying Coolant Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Position coolant hose with O-ring and fit it into the Henn coupling.
