Installing Coolant Pump

Information

• Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

1. Grease the coolant pump seal with Kluberplus Gel.

   Information

   Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

   • Torx screws: (E..) for external Torx, (T..) for internal Torx.
   • Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
2. Fit the coolant pump.
   1. 2.1. Fit the coolant pump initially using five external Torx screws (E10, M6 x 20) -1-  .
   2. 2.2. Fit and tighten one external Torx screw (E12, M8 x 25) -2-  .

      → Tightening torque: 33 Nm (24 ft. lb.)

   3. 2.3. Tighten five external Torx screws (E10, M6 x 20).

      → Tightening torque: 13 Nm (9.5 ft. lb.)

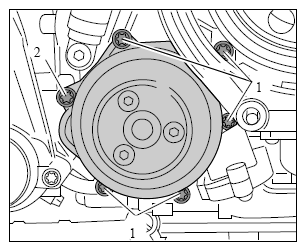

      Fig 1: Identifying Coolant Pump Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
