Installing Coolant Pump

Information

• Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

1. Grease the coolant pump seal with Kluberplus Gel.
2. Fit coolant pump.
   1. 2.1. Fit the pump using six external Torx screws.
   2. 2.2. Fit and tighten screws uniformly.

      → Tightening torque: 13 Nm (9.5 ft. lb.)

      → Tightening torque: 23 Nm (17 ft. lb.)

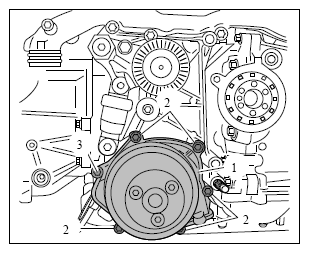

      Fig 1: Overview For Coolant Pump Component

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Coolant pump
      2. 5 x external Torx screw (E10), M6 x 20
      3. 1 x external Torx screw (E12, M8 x 25)
