Overview Of Additional Coolant Pump

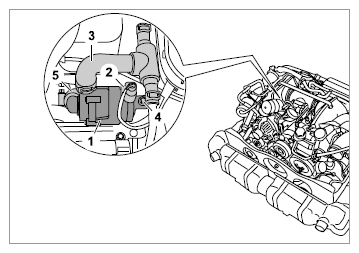

Fig 1: Identifying Additional Coolant Pump Installation Position
G09827723Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Additional coolant pump
  2. Cable plug
  3. Coolant hose
  4. Screw
  5. Coolant hose
