Installing Reservoir For Coolant

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Install coolant reservoir.
   1. 1.1. Guide reservoir into the engine compartment and slide it into the holders.
   2. 1.2. Screw in and tighten the collar nut.

      → Tightening torque: 10 Nm (7.5 ft. lb.)

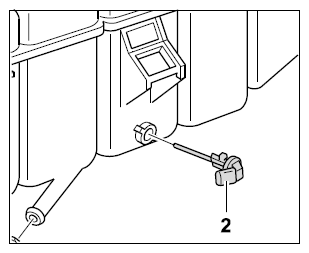

2. Install engine coolant level sensor -2-  .

   Insert the sensor -2-  into the reservoir and connect the cable plug.

   Fig 1: Installing Engine Coolant Level Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   To facilitate assembly of coolant pipes and hoses, smear with Kluberplus S06-100 assembly gel.

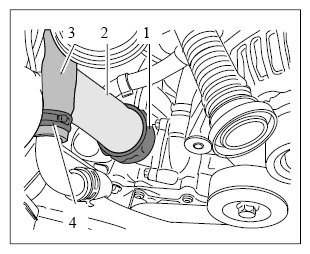

3. Install coolant hoses.
   1. 3.1. Check the O-ring on the large coolant hose -2-  for damage and replace it if necessary. Fit spring clamps on the mounts.
   2. 3.2. Press the coolant hose -2-  firmly into the mounts. The coolant hose must lock with an audible click in both connection pieces. Pull to check that the connection is secure.
      Fig 2: Identifying Coolant Hoses And Reservoir Installation Position

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

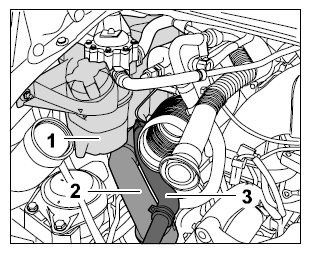

   3. 3.3. Install supply hose -3-  . Attach the hose and tighten the spring band clamp.
      Fig 3: Identifying Coolant Supply Hose And Left Henn Coupling

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

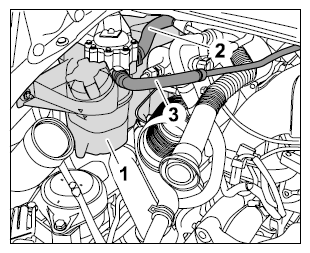

4. Fit coolant hoses at the coolant reservoir -1-  .
   1. 4.1. Connect the supply hose from the radiator -2-  to the coolant reservoir and clip it in at the holder.
   2. 4.2. Connect the overflow hose -3-  to the coolant reservoir.
      Fig 4: Identifying Reservoir Coolant Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
