WM 194019 Removing And Installing Coolant Tank (Turbo Coupe, Turbo CABRIO & Gt2): Information: Overview

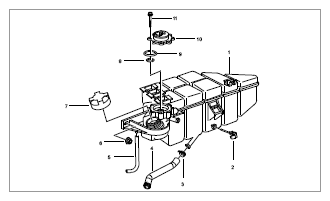

Fig 1: Identifying Coolant Reservoir Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Coolant reservoir
2. Engine coolant level sensor
3. Spring band clamp
4. Coolant supply hose
5. Overflow hose
6. Fastening nut
7. Lid
8. Sealing ring
9. Sealing ring
10. Bleeder valve
11. Screw
