WM 194019 Removing And Installing Coolant Reservoir (Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Information

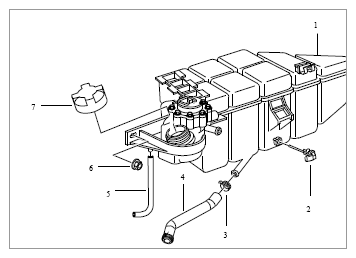

Fig 1: Overview Of Coolant Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Coolant reservoir
2. Engine coolant level sensor
3. Spring band clamp
4. Coolant supply hose
5. Overflow hose
6. Fastening nut
7. Cap
