Subsequent Work

Raise the engine.
Raise the engine into installation position with a jack, using Retainer Plate P 9592 to do this.

Screw in and tighten M12 collar nuts -1- .

→ Tightening torque: 85 Nm (63 ft. lb.)

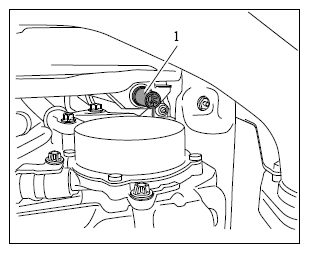

Fig 1: Engine Carrier To Engine Mounting (Cylinder Bank 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill in coolant and bleed the system.
→ 193817 DRAINING AND FILLING IN COOLANT (INCLUDES BLEEDING) .
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Installing".
Test-drive the vehicle and correct the engine coolant level in the reservoir if necessary (observe Min/Max marking).
