Draining Coolant

→ Let the fluid cool down.

→ Wear personal protective gear.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Open the cap -1-  on the expansion tank and remove it.

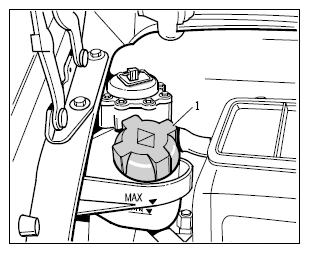

   Fig 1: Identifying Coolant Expansion Tank Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew coolant drain plugs (hexagon socket).
   1. 2.1. Unscrew the drain plug (hexagon socket) on the coolant guide tube -1-  .

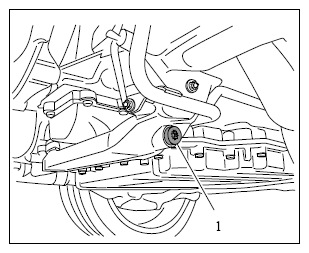

      Fig 2: Identifying Coolant Drain Plug

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Unscrew the drain plug on the thermostat housing -1-  .

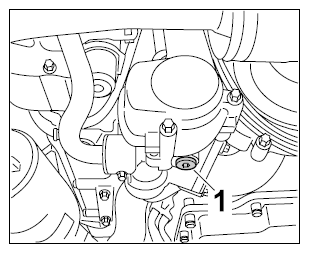

      Fig 3: Identifying Thermostat Housing Coolant Drain Plug

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Collect emerging coolant.
   1. 3.1. To do this, secure a pan -2-  on a transmission jack and position it under the drain positions.

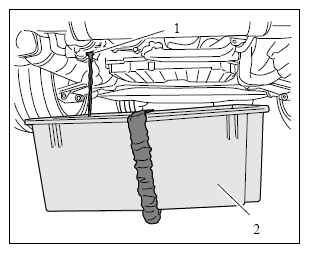

      Fig 4: Identifying Coolant Pan

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. After draining the coolant, screw in and tighten drain plugs with new sealing rings.

   → Tightening torque: 25 Nm (19 ft. lb.)
