Removing Air Guide For Side Radiator

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

1. Remove air guide in driving direction, left.
   1. 1.1. Unscrew two tapping screws (T 27) -1-  .
   2. 1.2. Pull air guide out of the plastic clips -2-  .

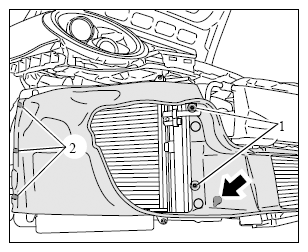

      Fig 1: Identifying Side Radiator Air Guide

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove air guide at the right in direction of travel in the same way as the air guide at the left in direction of travel.
   1. 2.1. Pull outside temperature sensor -arrow-  out of the air guide from behind and leave it hanging at the connecting cable.

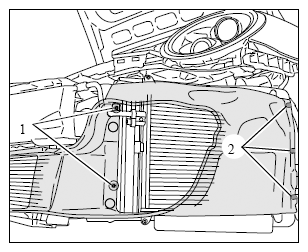

      Fig 2: Locating Outside Temperature Sensor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
