Removing Air Guide

  1. Remove left -1-  or right air guide. Left side in direction of travel is shown (right side is a mirror image).
    1. 1.1. Unscrew three tapping screws (internal Torx, 5 x 16).

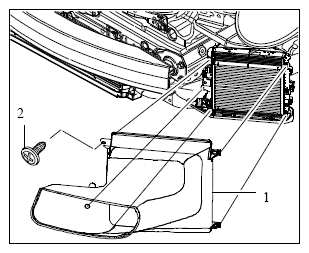

      Fig 1: Removing Air Guide Mounting
      G09827650Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn the air guide outwards by approx. 90 degrees and disengage tabs on the radiator -arrow-  .
    Fig 2: Locating Radiator Air Guide Mounting
    G09827651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
