Installing Electric Fan (With Frame)

Install electric fan in frame.
1. 1.1. Position electric fan in frame. Screw in and tighten three M6 hexagon nuts (a/f 10) -1- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 1.2. Secure electric line to the frame with a tie-wrap.

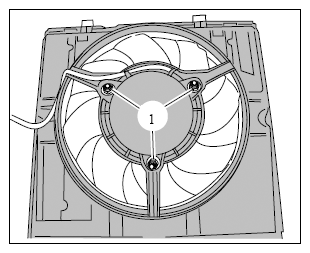

  Fig 1: Identifying Electric Fan With Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide electric fan with frame into the guides -2- .
1. 2.1. Bend electric fan with frame from the inside out.
2. 2.2. Screw in and tighten tapping screws (T 25) -1- .

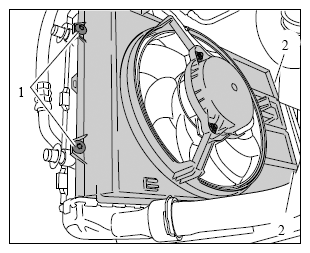

  Fig 2: Identifying Cooling Fan
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install bracket from below.
1. 3.1. Fit hose holder into the guide and screw in and tighten the screw (a/f 10, M6 x 16) -1- .
  → Tightening torque: 13 Nm (9.5 ft. lb.)
2. 3.2. Screw in and tighten nuts (a/f 13, M8 x 12) -2- .
  → Tightening torque: 23 Nm (17 ft. lb.)
3. 3.3. Fit and secure washers and sheetmetal clips -3- .

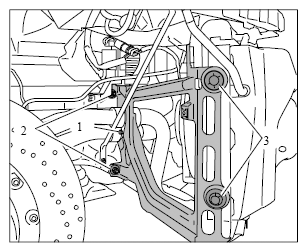

  Fig 3: Identifying Electric Fan Side Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure bracket -2- at the bottom.
1. 4.1. Screw in and tighten screw (a/f 13, M8 x 12) -1- .
  → Tightening torque: 23 Nm (17 ft. lb.)

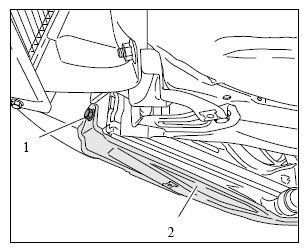

  Fig 4: Identifying Cooling Fan Bottom Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in vent line -1- at the holder for the bracket -2- in the wheel housing.

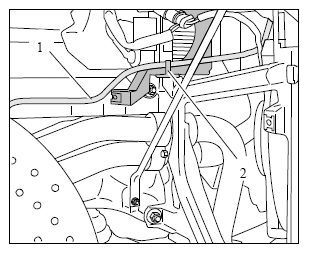

Fig 5: Identifying Vent Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection -1- for electric fan.

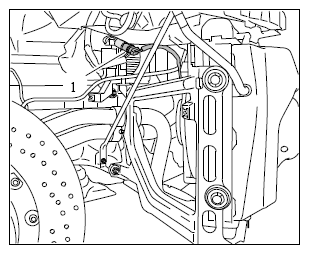

Fig 6: Identifying Fan Cable Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit holding strut -1- and tighten M6 nuts (a/f 10) -2- .
→ Tightening torque: 13 Nm (9.5 ft. lb.)

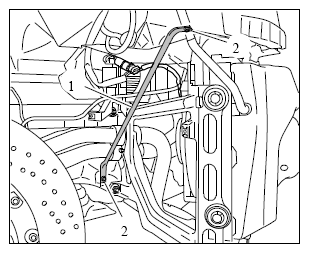

Fig 7: Identifying Cooling Fan Side Bracket And Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
