Checking For Coolant Leaks

→ Let the fluid cool down.

→ Wear personal protective gear.

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Check the cooling system for leaks.
   1. 1.1. To do this, apply a test pressure of max. 1.8 bar using the Cooling System Tester WE 1069  .
   2. 1.2. Visually check all hose connections and connection points for leaks.

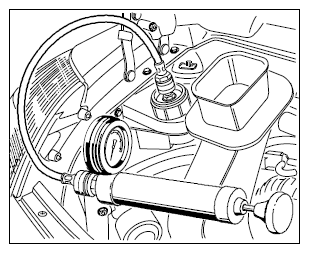

      Fig 1: Connecting Cooling System Tester

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
