WM 190101 Checking Cooling System (CARR. Coupe, CARR. S Coupe, CARR. CABRIO, CARR. S CABRIO, CARR. 4 Coupe, CARR. 4S Coupe, TARGA 4, TARGA 4S, CARR. 4 CABRIO, CARR. 4S CABRIO, CARR. GTS Coupe, CARR. GTS CABRIO, Speedster): Checking: Tools

Information

• The required tools can be ordered in a case from Leitenberger Autotestgerate GmbH
• Order No.: LR 150/Porsche.

Overview:

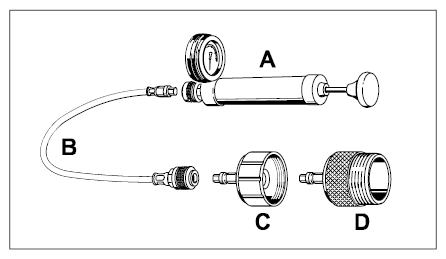

Fig 1: Identifying Cooling System Check Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pump for leak test: Tester for cooling system WE 1069
2. Adapter and hose extension FZ 100K
3. Adapter K 22 for leak testing cooling system, filling coolant and bleeding
4. Plug adapter DS 22K (aluminium)

Test equipment for antifreeze test:

• 1. Commercially available antifreeze testers.
• 2. Antifreeze and battery acid tester SUN Duo-Check WE 1036  .
• 3. Antifreeze and battery acid tester FT 2030 WE 1037  .
