Installing Turbocharger Oil Tank

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Information

• Replace all gaskets and O-rings.
• Use the lubricant Kluber Syntheso Glep (Part No. 000.043.204.68).

1. Install oil tank.
   1. 1.1. Fit oil tank from below, inserting the vent line into the oil tank at the same time.
   2. 1.2. Fit and tighten two external Torx screws (E10, M6 x 25) -1-  at the oil tank.

      → Tightening torque: 10 Nm (7.5 ft. lb.)

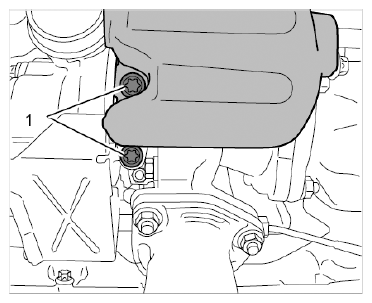

      Fig 1: Identifying Turbocharger Oil Tank, Underside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit and tighten external Torx screw (E10, M6 x 12) for shield on the oil tank.

   → Tightening torque: 10 Nm (7.5 ft. lb.)

3. Fit turbocharger oil return line and vent line at the oil tank.
   1. 3.1. Fit external Torx screw (E10, M6 x 12) -3-  for vent line -5-  .
   2. 3.2. Insert oil return line -6-  into the oil tank -arrow-  and fit external Torx screw (E10, M6 x 12) -2-  .
   3. 3.3. Fit external Torx screw (E10, M6 x 12) at the oil return line support -1-  .
   4. 3.4. Tighten all the screws.

      → Tightening torque: 10 Nm (7.5 ft. lb.)

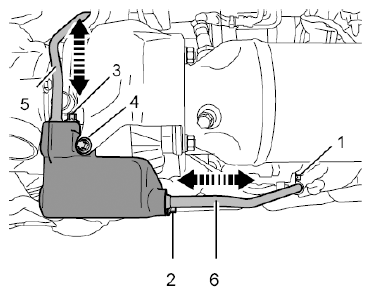

      Fig 2: Identifying Turbocharger Oil Tank

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
