Installing Oil Pressure Line - Cylinder Bank 4-6

  1. Guide in oil pressure line.
    1. 1.1. Protect the sealing flanges of the oil pressure line from damage with a plug.
    2. 1.2. Do not remove plugs until just before fitting.
  2. Apply a light coating of Kluber Syntheso Glep on the bores for the oil pressure line on the turbocharger and cylinder head.
  3. Install turbocharger → 213019 REMOVING AND INSTALLING TURBOCHARGER .

    Information

    • Lightly grease the O-rings on the three outer lines on the turbocharger using Kluber Syntheso Glep only.
    • The O-rings on the oil pressure lines must not be greased. Only apply a light coating of Kluber Syntheso Glep on the bore in the turbocharger.
  4. First fit the oil pressure line on the turbocharger, then on the cylinder head.

    Information

    We recommend that you use the following tools to secure the internal Torx screw (oil pressure line) on the turbocharger:

    • Torx screwdriver insert bits Nr.41 (Hazett 2223 lg T30).
    • Change-over ratchet insert bit Nr.186 (Hazett 6408).
    • Torque wrench Nr.90 Pos.2.
    1. 4.1. Fit the M6 internal Torx screws by hand and tighten them. → Tightening torque: 10 Nm (7.5 ft. lb.)
  5. Remove plugs on the coolant lines before fitting to allow remaining coolant to drain away.

    Information

    • Lightly grease the O-rings on the three outer lines on the turbocharger using Kluber Syntheso Glep only.
    • The O-rings on the oil pressure lines must not be greased. Only apply a light coating of Kluber Syntheso Glep on the bore in the turbocharger.
  6. Fit the other three lines on the turbocharger with new O-rings. → Tightening torque: 10 Nm (7.5 ft. lb.)
  7. Install ignition coil for cylinder 5. Fit and tighten two M6 internal Torx screws. → Tightening torque: 10 Nm (7.5 ft. lb.)
  8. Fit holding clamp -2-  for oil pressure line -1-  on the camshaft housing cover. Fit and tighten one M6 Torx screw. → Tightening torque: 10 Nm (7.5 ft. lb.)
    1. 8.1. Connect ignition coil plug for cylinders 4 and 5 -3-  .
    2. 8.2. Connect cable plug for hall sender -4-  .

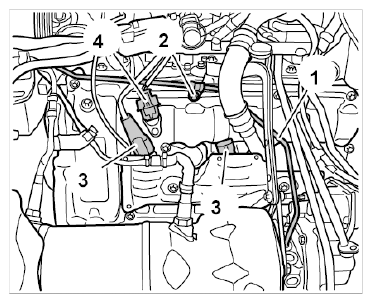

      Fig 1: Identifying Holding Clamp, Ignition Coil And Hall Sender Connectors
      G09828488Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Fit cover plate. Fit and tighten two M6 Torx screws. → Tightening torque: 10 Nm (7.5 ft. lb.)
