Subsequent Work

Replace O-rings on the relevant intake air line and grease lightly with Kluber Syntheso Glep.
Secure the intake air line at the holder in the engine compartment and then fit it on the turbocharger flange.
1. 2.1. Cylinder bank 1-3: Fit and tighten two M6 Torx screws -arrows- on the turbocharger and one M6 hexagon nut -1- on the guide plate.

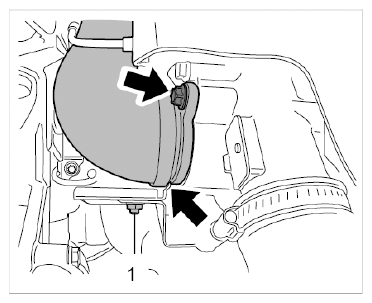

  Fig 1: Identifying Intake Air Line Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Connect cable plug on electronic adjuster.
3. 2.3. Cylinder bank 4-6: Fit and tighten two M6 Torx screws -arrows- on the turbocharger.

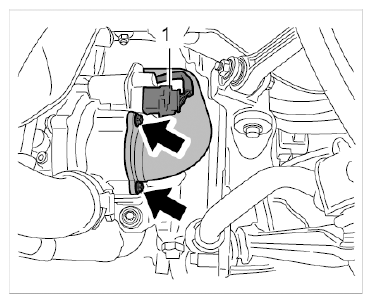

  Fig 2: Identifying Intake Air Line And Cable Plug For Electronic Adjuster, Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Connect cable plug -1- on electronic adjuster.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
Install rear silencer.
→ 263319 REMOVING AND INSTALLING REAR SILENCER .
Install charge-air cooler.
→ 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER - GT2 RS .
