Removing Actuating Rod For Turbocharger Electronic Adjuster

→ Do not place any solid objects under the raised vehicle.

→ Ensure that the lifting platform is prevented from lowering.

→ Remove solid objects before lowering the vehicle.

→ Raise the vehicle only at the jacking points provided.

→ The outer jacking points should be used primarily.

→ Let hot components cool down.

→ Wear personal protective gear.

1. Unclip actuating rod at the ball joints for the electronic adjuster and turbocharger -arrows-  .

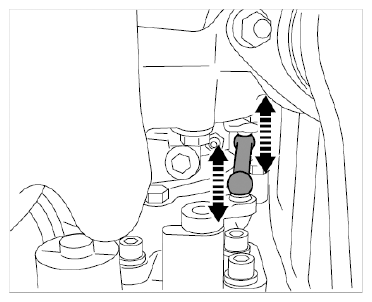

   Fig 1: Removing/Installing Actuating Rod For Turbocharger Electronic Adjuster

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Clean the ball joints.
