Installing Electronic Adjuster - Cylinder Bank 4-6

Before installing the electronic adjuster, press the new actuating rod onto the ball joint of the removed electronic adjuster.
Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
Fit cheese head bolt (hexagon socket a/f 5, M6 x 30) at the top -2- on the electronic adjuster.
Tool recommendation as for removal

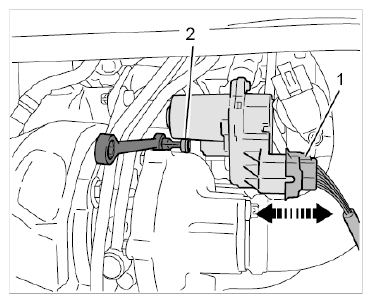

Fig 1: Identifying Electronic Adjuster For Turbocharger, Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

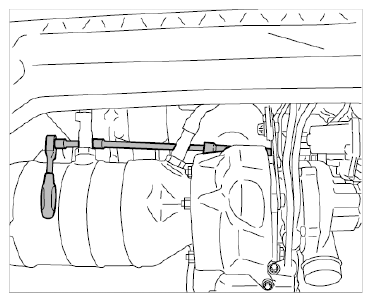

Using tools:

Fig 2: Installing Electronic Adjuster For Turbocharger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten two cheese head bolts (hexagon socket a/f 5, M6 x 30) -1- on the electronic adjuster.
→ Tightening torque: 7 Nm (5 ft. lb.)

Tool recommendation as for removal

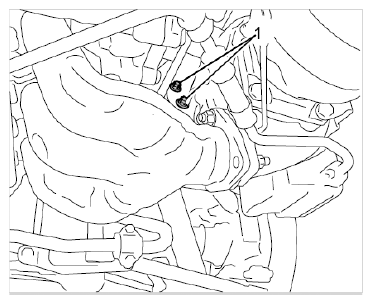

Fig 3: Identifying Bottom Fastening Screws On Electronic Adjuster, Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the third cheese head bolt on the electronic adjuster -> Tightening torque: 7 Nm (5 ft. lb.) .
Tool recommendation as for removal
Press the ball joint of the new actuating rod -1- onto the turbocharger.

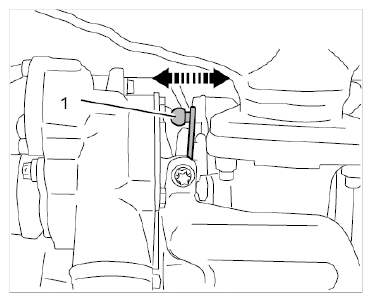

Fig 4: Pressing Ball Joint Of Actuating Rod Onto Turbocharger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug on the electronic adjuster.
