Installing Electronic Adjuster - Cylinder Bank 1-3

Before installing the electronic adjuster, press the new actuating rod onto the ball joint of the removed electronic adjuster.
Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
Fit and tighten cheese head bolts (hexagon socket a/f 5, M6 x 30) -2- on the electronic adjuster.
Tool recommendation as for removal

→ Tightening torque: 7 Nm (5 ft. lb.)

Fig 1: Installing Electronic Adjuster For Turbocharger, Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

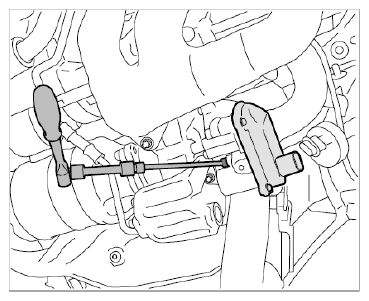

Using tools → Loosening/securing electronic adjuster on cylinder bank 1-3

Fig 2: Loosening/Securing Electronic Adjuster On Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

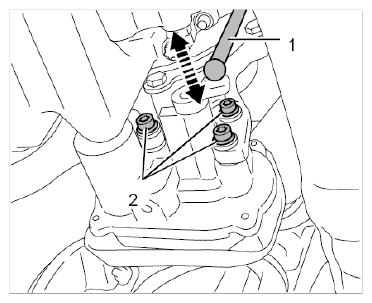

Press the ball joint of the new actuating rod -1- onto the turbocharger.

Fig 3: Pressing Ball Joint Of Actuating Rod Onto Turbocharger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

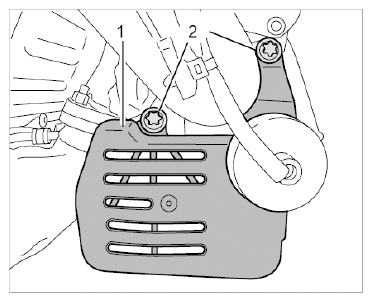

Fit cover -1- for electronic adjuster and intake air line.
1. 4.1. Fit and tighten two external Torx screws (E10, M6 x 30) -2- on the turbocharger.
  → Tightening torque: 10 Nm (7.5 ft. lb.)

  Fig 4: Identifying Electronic Adjuster Cover, Cylinder Bank 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

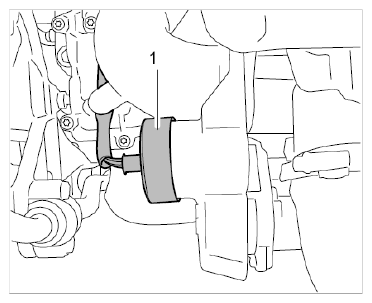

Connect the cable plug for electronic adjuster and slide on rubber cap -1- .

Fig 5: Connecting Cable Plug For Electronic Adjuster
