Removing Electronic Adjuster For Turbocharger, Cylinder Bank 4-6

→ Let hot components cool down.

→ Wear personal protective gear.

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Disconnect and pull off cable plug -1-  on electronic adjuster -arrow-  .
2. Unscrew one cheese head bolt with washer (hexagon socket a/f 5, M6 x 26) -2-  on electronic adjuster.
   1. 2.1. Tool recommendation: long socket-wrench insert with ball joint (3/8 inch) for hexagon socket a/f 5

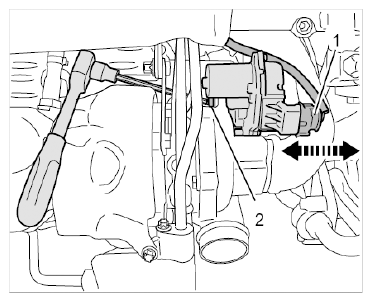

      Fig 1: Removing Turbocharger Electronic Adjuster, Cylinder Bank 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Detach ball joint of actuating rod on turbocharger -1-  using a screwdriver -arrow-  .
4. Unscrew two cheese head bolts with washer (hexagon socket a/f 5, M6 x 26) -2 and 3-  on electronic adjuster.
   1. 4.1. Tool recommendation: long socket-wrench insert (3/8 inch) with ball joint for hexagon socket a/f 5 and short extension.

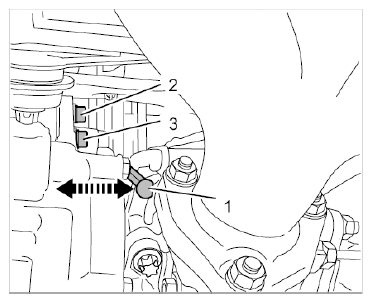

      Fig 2: Removing Turbocharger Electronic Adjuster, Cylinder Bank 4-6, Underside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove electronic adjuster.

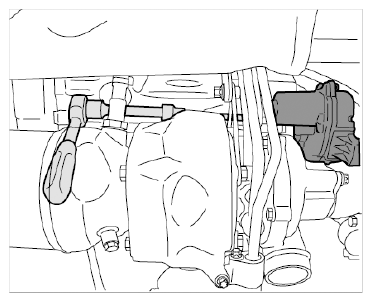

   Fig 3: Removing Electronic Adjuster, Cylinder Bank 4-6

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Replace actuating rod for adjustment mechanism.
