Installing Electronic Adjuster For Turbocharger, Cylinder Bank 4-6

Information

• Replace the actuating rod for the adjustment mechanism after removing the electronic adjuster.

1. Fit the new actuating rod on the ball joint of the removed electronic adjuster before installing the electronic adjuster.
2. Insert electronic adjuster with actuating rod. Guide actuating rod to the ball joint on the turbocharger.
3. Secure electronic adjuster.

   Tool recommendation: see removal details.

   1. 3.1. Fit one fastening screw with washer (hexagon socket a/f 5, M6 x 26) -2-  at the top of the electronic adjuster, but do not tighten yet.

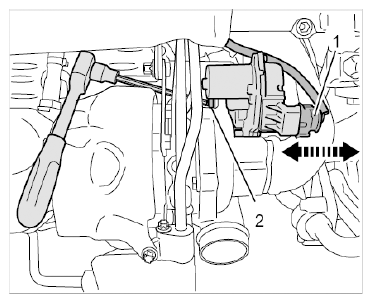

      Fig 1: Inserting Electronic Adjuster With Actuating Rod

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Fit two fastening screws (hexagon socket a/f 5, M6 x 26) -2 and 3-  at the bottom of the electronic adjuster, but do not tighten yet.
   3. 3.3. Fit ball joint of actuating rod on turbocharger -1-  .

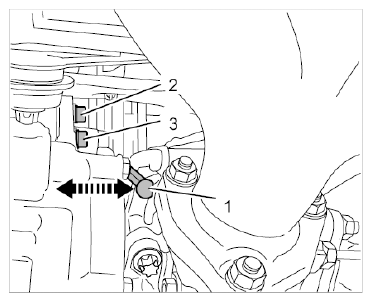

      Fig 2: Fitting Ball Joint Of Actuating Rod On Turbocharger

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Tighten cheese head bolts with washer (hexagon socket a/f 5, M6 x 26) on electronic adjuster.

   → Tightening torque 8 Nm (6 ft. lb.), same as bank 1-3

5. Connect cable plug on electronic adjuster -1-  .

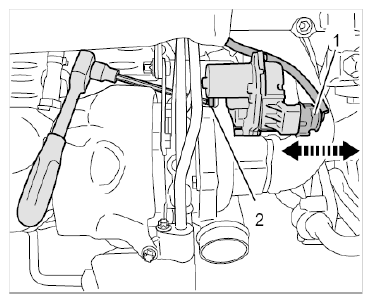

   Fig 3: Connecting Cable Plug On Electronic Adjuster, Cylinder Bank 4-6

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
