Installing Electronic Adjuster For Turbocharger, Cylinder Bank 1-3

Information

• Replace the actuating rod for the adjustment mechanism after removing the electronic adjuster.

1. Fit the new actuating rod on the ball joint of the removed electronic adjuster before installing the electronic adjuster.
2. Insert electronic adjuster with actuating rod from below and guide actuating rod towards the ball joint on the turbocharger.
3. Secure electronic adjuster.

   Tool recommendation: see removal details.

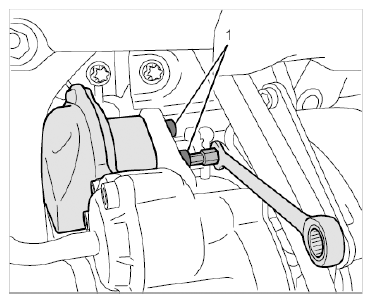

   1. 3.1. Fit two cheese head bolts with washer (hexagon socket a/f 5, M6 x 26) -1-  on electronic adjuster, but do not tighten yet.
      Fig 1: Fitting Fastening Screws For Turbocharger Electronic Adjuster, Cylinder Bank 1-3

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

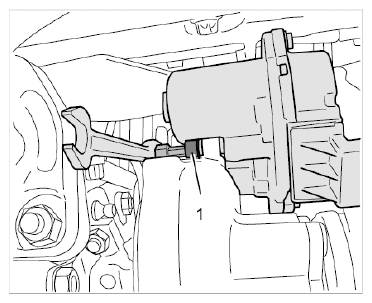

   2. 3.2. Fit third cheese head bolt with washer (hexagon socket a/f 5, M6 x 26) -1-  , but do not tighten yet.
      Fig 2: Removing Lower Mount For Electronic Adjuster, Cylinder Bank 1-3

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit ball joint for actuating rod on turbocharger -3-  (-arrow-  ).
   Fig 3: Fitting Ball Joint For Actuating Rod On Turbocharger

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Tighten cheese head bolts on electronic adjuster.

   → Tightening torque: 8 Nm (6 ft. lb.)

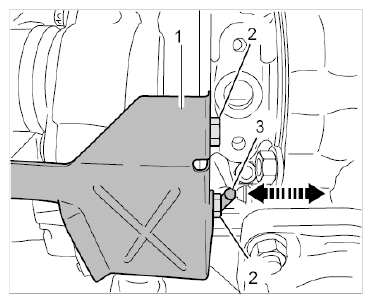

6. Install turbocharger heat shield -1-  , to do this fit and tighten two hexagon-head bolts (a/f 10, M6 x 16) -2-  .

   → Tightening torque: 10 Nm (7.5 ft. lb.)

7. Install turbocharger oil tank.

   → 217519 REMOVING AND INSTALLING TURBOCHARGER OIL TANK .

8. Connect cable plug on electronic adjuster.

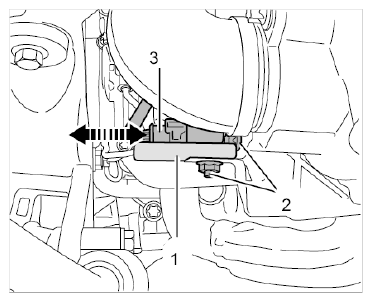

9. Install turbocharger shield -1-  , to do this fit and tighten two external Torx screws (E10, M6 x 12) -2-  .

   → Tightening torque: 10 Nm (7.5 ft. lb.)

   Fig 4: Identifying Turbocharger Electronic Adjuster, Cylinder Bank 1-3

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
