Installing Charge Air Cooler

Position the charge air cooler module on two threaded bolts on the body.
Use two hexagon-head bolts (M8 x 16) and one M8 hexagon nut to secure the charge air cooler bracket in the wheel housing.

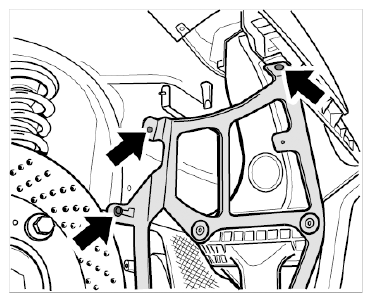

Fig 1: Identifying Threaded Joint For Charge Air Cooler Bracket In Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the bracket on the rear side using one hexagon-head bolt (M8 x 16) and one M8 hexagon nut, then tighten all threaded joints. → Tightening torque: 23 Nm (17 ft. lb.)

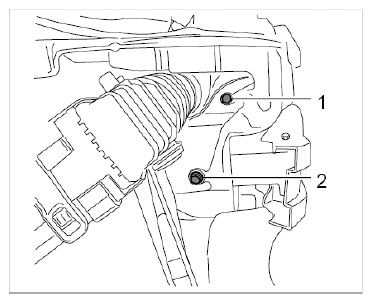

Fig 2: Identifying Threaded Joint On Rear Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use two speed nuts (a/f 13) to secure the heat protection panel to the underside of the charge air cooler bracket.

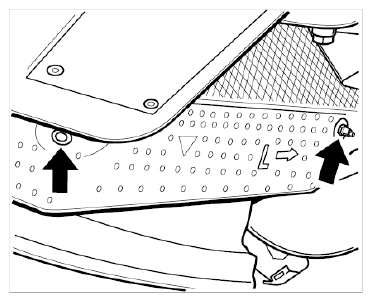

Fig 3: Locating Speed Nuts On Rear Heat Protection Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pre-fit the spring clamps for suction and pressure hoses on the charge air cooler.
Replace O-rings on suction and pressure hoses and grease them with Kluber Syntheso Glep (available from Porsche Parts Service).
Insert suction and pressure hoses into the rapid-action couplings on the charge air cooler. The connection must engage audibly. Pull to check that connection is secure.
