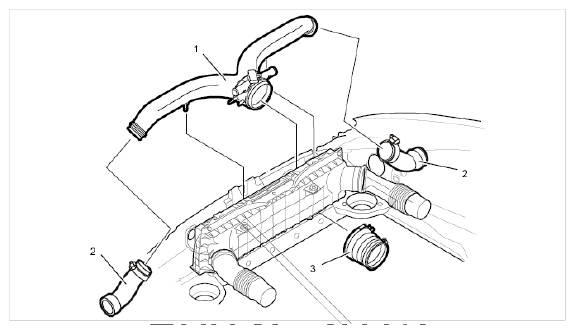

Component overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pressure pipe
- Pressure hoses from charge air cooler
- Rubber shroud for pressure system
- Remove pressure pipe.

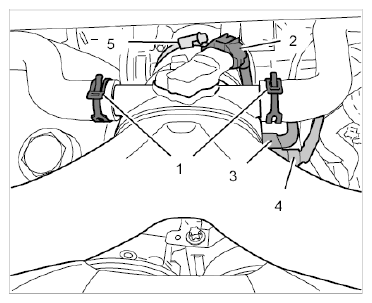

- 1.1. Disconnect and pull off the ambient air lines -1-
at the left and right of the pressure pipe.
- 1.2. Disconnect and pull off the cable plug -2-
on the pressure sensor.
- 1.3. Disconnect and pull off the control lines on the pressure pipe -3 and 4-
.
- 1.4. Loosen the screw-type clamp on the rubber shroud -5-
for the throttle unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.5. Loosen screw-type clamps -1-
on the pressure pipe (charge air cooler connection).

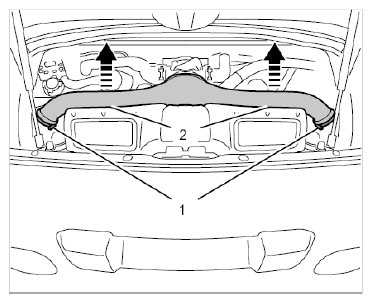

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.6. Pull the pressure pipe out of the rubber mountings on the air cleaner housing -2-
and remove it along with the rubber shroud.
