Removing Pressure Pipe

  1. Remove pressure pipe.
    1. 1.1. Pull cable plug off the boost-pressure sensor -3-  .
    2. 1.2. Loosen screw-type clamps -6-  and pull hoses off the charge air cooler on the pressure pipe.
    3. 1.3. Loosen screw-type clamp -2-  on throttle housing and pull pressure pipe out of the rubber mountings and remove it.

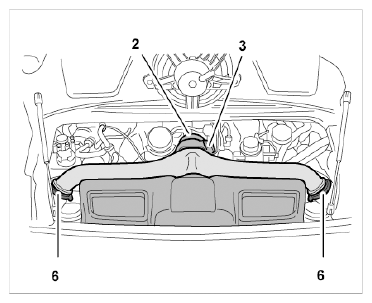

      Fig 1: Identifying Boost-Pressure Sensor, Screw-Type Clamps
      G09828340Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove air cowl.
    1. 2.1. Loosen screw-type clamp and pull air cowl off the throttle housing.
