Component Information

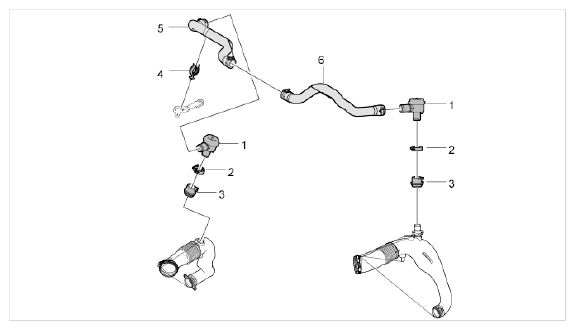

Fig 1: Overview Of Recirculating Air Valves
G09828331Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Recirculating air valves
  2. Spring band clamps
  3. Rubber sleeves
  4. Hose holder
  5. Pressure hose, cylinder bank 1-3
  6. Pressure hose, cylinder bank 4-6
