Installing Battery Cover

  1. Engage battery cover with external hooks in left and right mounting points of cowl panel cover.
  2. Insert battery cover as far as it will go by pivoting it inward  and applying simultaneous pressure  in direction of windscreen.
  3. Align turn-lock fasteners fore-and-aft and engage by pressing down lightly.
  4. Locate locking hooks at the connecting flanges with the plenum panel side covers by pressing down lightly.

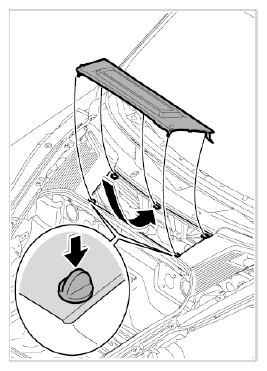

    Fig 1: Installing Battery Cover
    G09819653Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Check gap dimension of battery cover; if necessary, rework the cowl panel covers or adjust the covers of battery, cowl panel, plenum panel so that they mate. → 271219 REMOVING AND INSTALLING BATTERY COVER
