Installing Rear Silencer - Turbo

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

1. Grease the screw thread and clamps with high-temperature grease Optimol Paste MF (Part No. 000.043.207.07) before installation.

   Information

   • The help of another person is required for removing and installing the silencer.
2. Pre-fit the catalytic converter (cylinder bank 1-3) on the removed rear silencer. Do not tighten the clamp yet.
3. Fit the rear silencer and catalytic converter for cylinder bank 1-3 on the catalytic converter for cylinder bank 4-6 -arrow 1-  . Do not tighten clamp yet.
   1. 3.1. Get another person to hold the rear silencer.

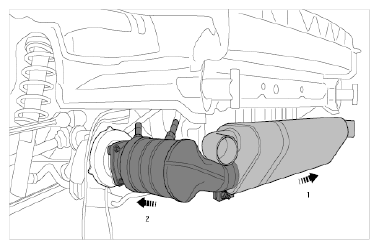

      Fig 1: Installing Rear Silencer/Catalytic Converter (Cylinder Bank 1-3)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit a new metal seal on the turbocharger and slide the catalytic converter (cylinder bank 1-3) onto the threaded bolts on the turbocharger -arrow 2-  .
   1. 4.1. Position heat shield at the threaded bolts.
   2. 4.2. Fit and tighten four M8 hexagon nuts (a/f 13) on the threaded bolts.

      → Tightening torque: 25 Nm (19 ft. lb.)

5. Secure the rear silencer.
   1. 5.1. Position two restraining straps on the holder and tighten the two M8 cheese head bolts.

      → Tightening torque: 15 Nm (11 ft. lb.)

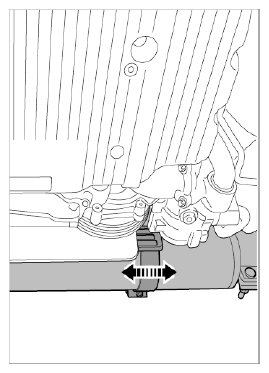

      Fig 2: Positioning Restraining Straps On Holder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 5.2. Tighten clamps -1-  at the connection points between the rear silencer and catalytic converter.

      Assembly position 45°, screw head facing backwards

      → Tightening torque: 55 Nm (41 ft. lb.)

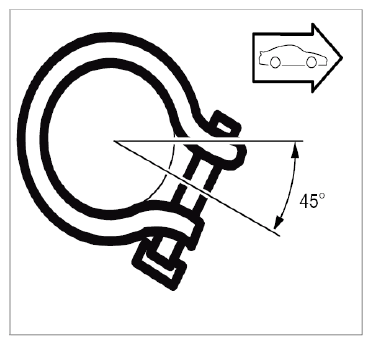

      Fig 3: Identifying Clamping Sleeve Installation Position

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Clamps
      2. Restraining straps

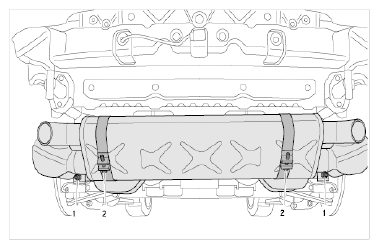

         Fig 4: Identifying Rear Silencer Mounting

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Route electric lines for oxygen sensors -1 and 2-  .
   1. 6.1. Guide the oxygen sensor lines at the side of the engine to the plug connections in the engine compartment and clip them into the line brackets -arrows-  .

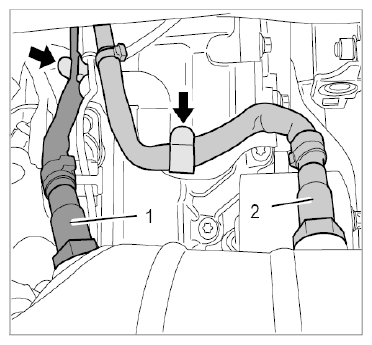

      Fig 5: Locating Oxygen Sensors

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 6.2. Close the plug connections -1 and 2-  for the oxygen sensors and clip the connectors into the holders.

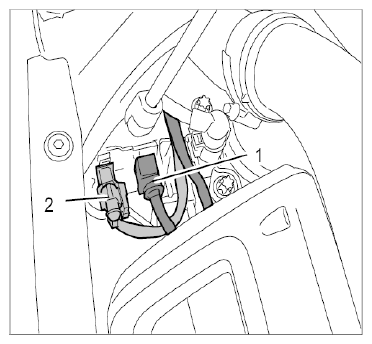

      Fig 6: Identifying Oxygen Sensor Connectors (Cylinder Bank 1-3)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
