Installing Rear Silencer

Insert the silencer into the vehicle from the wheel side and move it into installation position.
1. 1.1. Insert threaded bolts at the retaining points and fit two M8 lock nuts -1- .

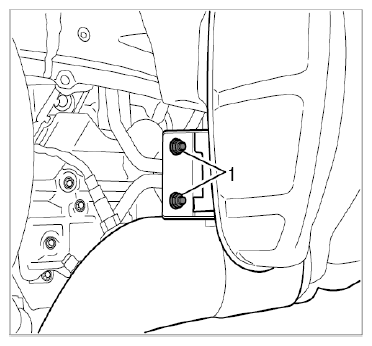

  Fig 1: Identifying Rear Silencer Mounting Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

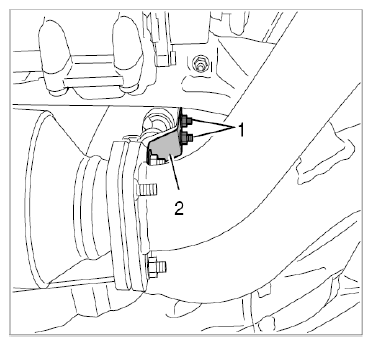

  Fig 2: Identifying Front Silencer Mounting Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Apply a light coating of high-temperature grease (e.g. Optimoly HT, Part No. 000.043.004.00) on the clamp or pipe adapter before installation.
Slide the clamping sleeve over the front silencer pipe and move it into installation position.

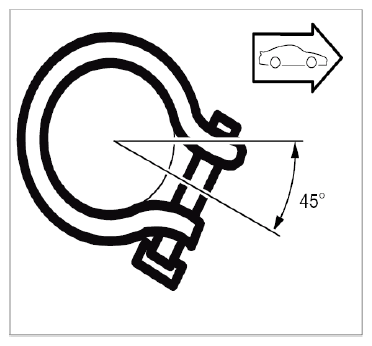

Fig 3: Identifying Clamp Sleeve Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit the two hexagon nuts -1- and tighten to the prescribed torque.

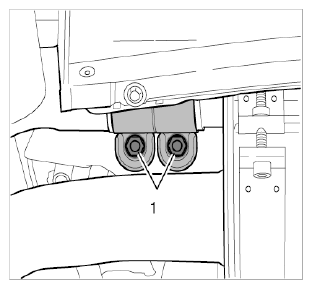

  Fig 4: Identifying Clamping Sleeve Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit two M8 lock nuts on the rear silencer holders and tighten to the prescribed tightening torque.
Fit tailpipe with a new ball clamp and adjust it.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER .
