Push-On Connector - Dust Boots
Dust boot for optical contacts:
If a LWL is stored, transported, or installed in a vehicle, then the dust boot must only be removed right before the LWL is used in the connector.
When testing the LWL, the dust boot must be put back on.
The dust boots can be removed without the use of a locking mechanism.
Do not touch the exposed contact surfaces while or after removing the dust boot, as otherwise the optical contacts could become damaged or dirty.

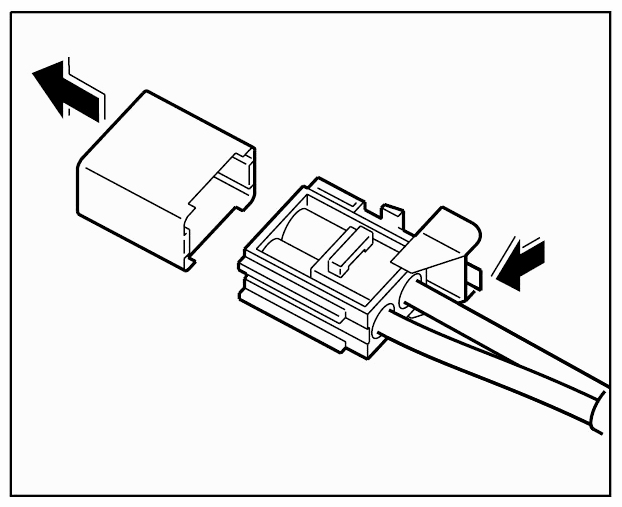

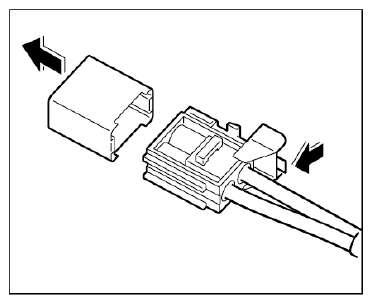

Dust boot for connector (wiring harness side):
If a pre-assembled wiring harness is installed, there is a dust boot on the connector for the LWL.
The dust boots can be removed by activating the locking mechanism
-arrow- .
When testing the LWL, the dust boot must be put back on.
Do not touch the exposed contact surfaces while or after removing the dust boot, as otherwise the optical contacts could become damaged or dirty.
