Push-On Connector - Connection Points

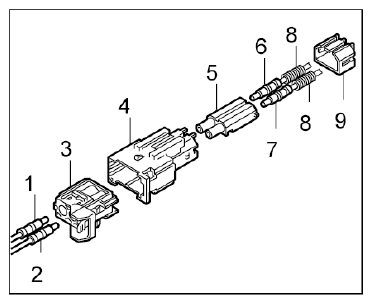

Structure of a LWL joint:

  1. Optical contact, black
  2. Optical contact, grey
  3. Joint connector side
  4. Joint socket side
  5. Socket side LWL module
  6. Optical contact, grey
  7. Optical contact, black
  8. Springs
  9. Spring cap
    Fig 1: Identifying Structure Of LWL Joint
    G09830396Courtesy of PORSCHE CARS NORTH AMERICA, INC.
