Optical Waveguide Variants

Information

Depending on the equipment I No., the installation positions of the audio components in the front luggage compartment differ.

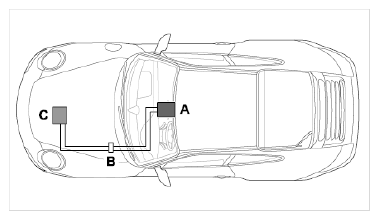

MOST control units, variant A - B - C

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
    Fig 1: Identifying MOST Control Units, Variant A - B - C Shown On 911
    G09830397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

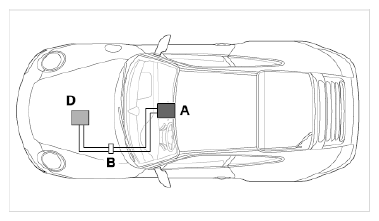

MOST control units, variant A - B - D

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
    Fig 2: Identifying MOST Control Units, Variant A - B - D Shown On 911
    G09830398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

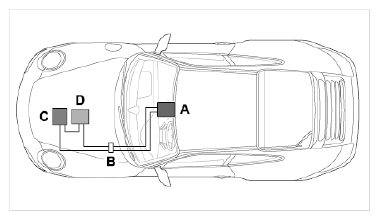

MOST control units, variant A - B - C - D

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
  4. CD changer
    Fig 3: Identifying MOST Control Units, Variant A - B - C - D Shown On 911
    G09830399Courtesy of PORSCHE CARS NORTH AMERICA, INC.

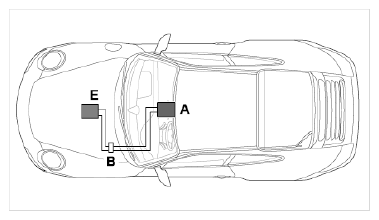

MOST control units, variant A - B - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. E  - Navigation unit
    Fig 4: Identifying MOST Control Units, Variant A - B - E Shown On 911
    G09830400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

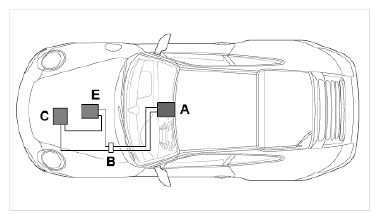

MOST control units, variant A - B - C - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. C  - Loudspeaker amplifier
  4. E  - Navigation unit
    Fig 5: Identifying MOST Control Units, Variant A - B - C - E Shown On 911
    G09830401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

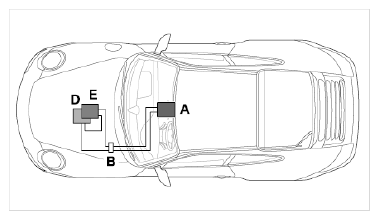

MOST control units, variant A - B - D - E

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
  4. E  - Navigation unit
    Fig 6: Identifying MOST Control Units, Variant A - B - D - E Shown On 911
    G09830402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

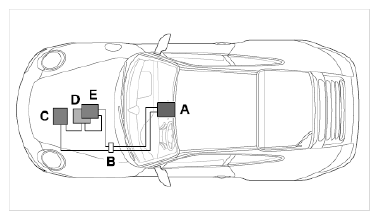

MOST control units, variant A - B - C - D - E

  1. Radio/PCM
  2. Connection point interior/luggage compartment
  3. Loudspeaker amplifier
  4. CD changer
  5. Navigation unit
    Fig 7: Identifying MOST Control Units, Variant A - B C - D - E Shown On 911
    G09830403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

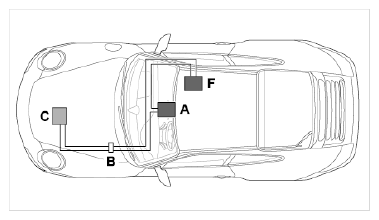

MOST control units, variant A - B - C - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. C  - Loudspeaker amplifier
  4. F  - Telephone control module
    Fig 8: Identifying MOST Control Units, Variant A - B - C - F Shown On 911
    G09830404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

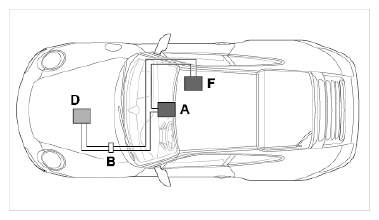

MOST control units, variant A - B - D - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. D  - CD changer
  4. F  - Telephone control module
    Fig 9: Identifying MOST Control Units, Variant A - B - D - F Shown On 911
    G09830405Courtesy of PORSCHE CARS NORTH AMERICA, INC.

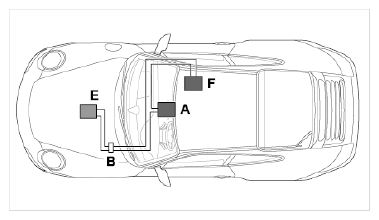

MOST control units, variant A - B - E - F

  1. A  - Radio/PCM
  2. B  - Connection point interior/luggage compartment
  3. E  - Navigation unit
  4. F  - Telephone control module
    Fig 10: Identifying MOST Control Units, Variant A - B - E - F Shown On 911
    G09830406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
