Installing Optical Contacts On Connector Side

Remove the dust boot right before plugging.

Check the proper condition of the contacts.

1. Push optical contacts -A and B-  into the connectors until they engage securely.
   1. Optical contact, grey
   2. Optical contact, black

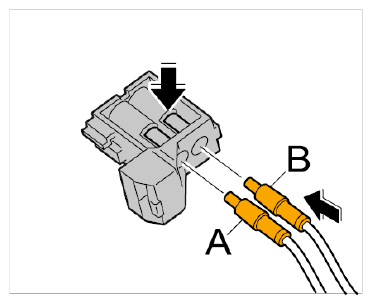

      Fig 1: Locking Primary Locking Mechanism Of Optical Contacts (Connector Side)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Close the secondary locking mechanism and check that the optical contacts are seated securely.

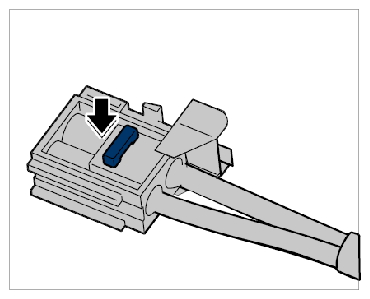

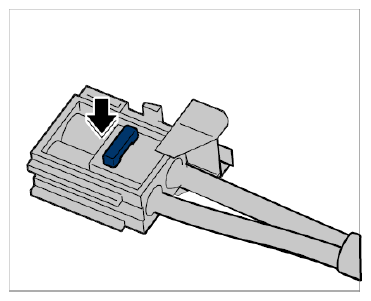

   Fig 2: Locking Secondary Locking Mechanism Of Optical Contacts (Connector Side)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
