Removing Gateway Control Unit

Information

The gateway control unit is located underneath the plenum panel.

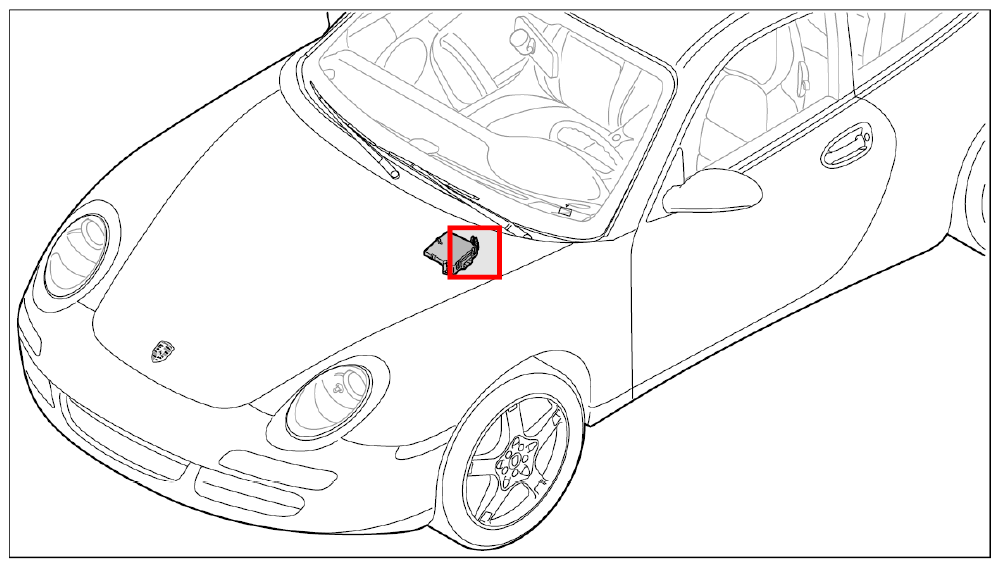

Fig 1: Identifying Gateway Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off ignition and remove ignition key.
2. Unscrew the three fastening screws -1-  on the cover.

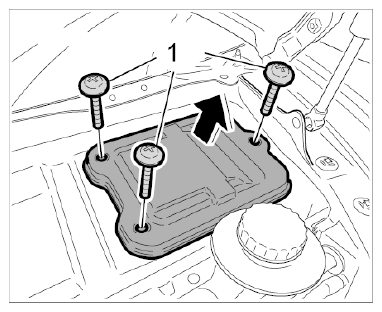

   Fig 2: Removing Cover Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Turn the cover and control unit around.
4. -A-  Pull (unclip) the gateway control unit out of the cover at the connector side.

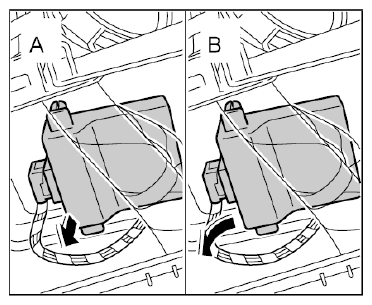

   Fig 3: Removing Gateway Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. -B-  Pull the gateway control unit to the left out of the holder.
6. Release electric connector -A-  and pull it off the gateway control unit.

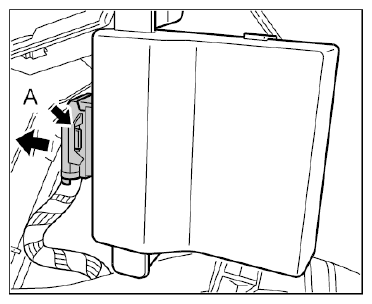

   Fig 4: Removing Electric Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
