Installing Control Unit For Four-Wheel Drive (PTM)

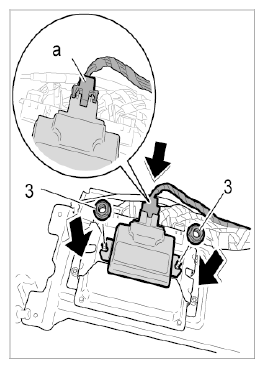

- Insert electric connector into the four-wheel drive control unit until it engages securely -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Place the four-wheel drive control unit on the holder and secure with the two fastening nuts -3-
. → Tightening torque: 10 Nm (7.5 ft. lb.)

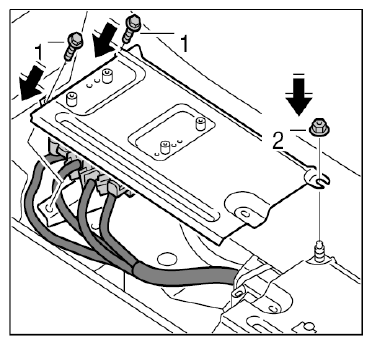

- Turn the control unit holder around and slide it in under the fastening nuts -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Tighten the two fastening screws -1-
and the fastening nuts -2-
. → Tightening torque: 10 Nm (7.5 ft. lb.) → Tightening torque: 10 Nm (7.5 ft. lb.)
