Technical Values: Overview
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Front-axle final drive - differential | Change quantity for changing differential oil | Filling capacity | 0.9 liter | ||
| Front-axle final drive - clutch | Change quantity for changing clutch oil | Filling capacity | 0.9 liter | ||

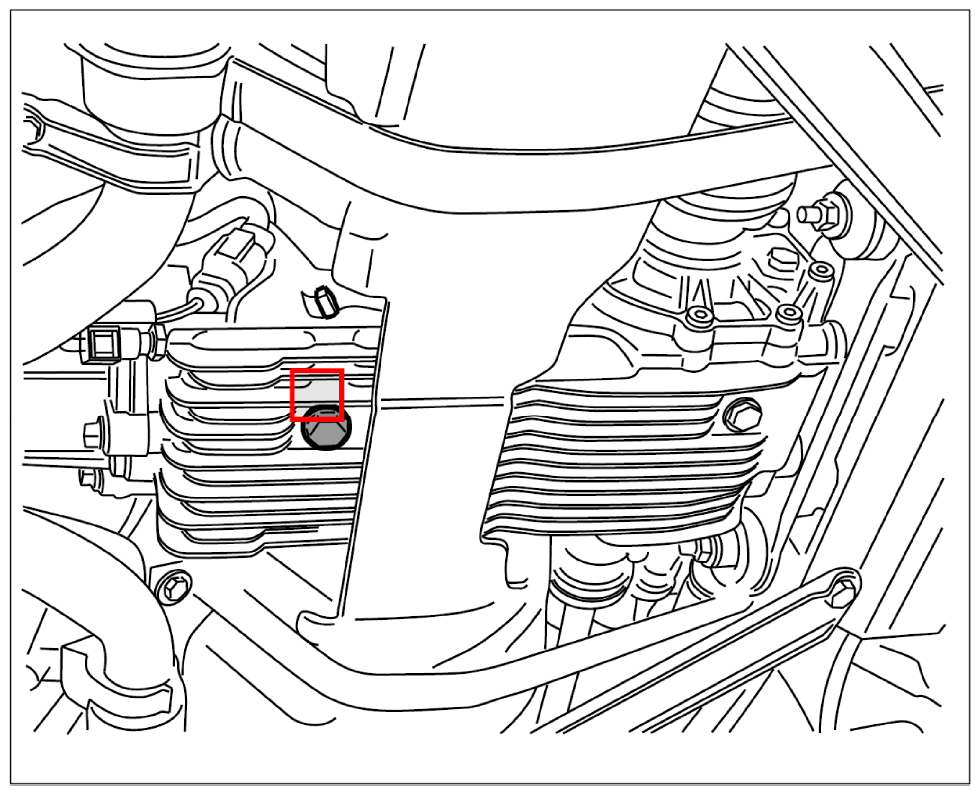

| Oil drain plug for differential oil for front final drive | Tightening torque | 28 Nm (21 ft. lb.) | |||
|

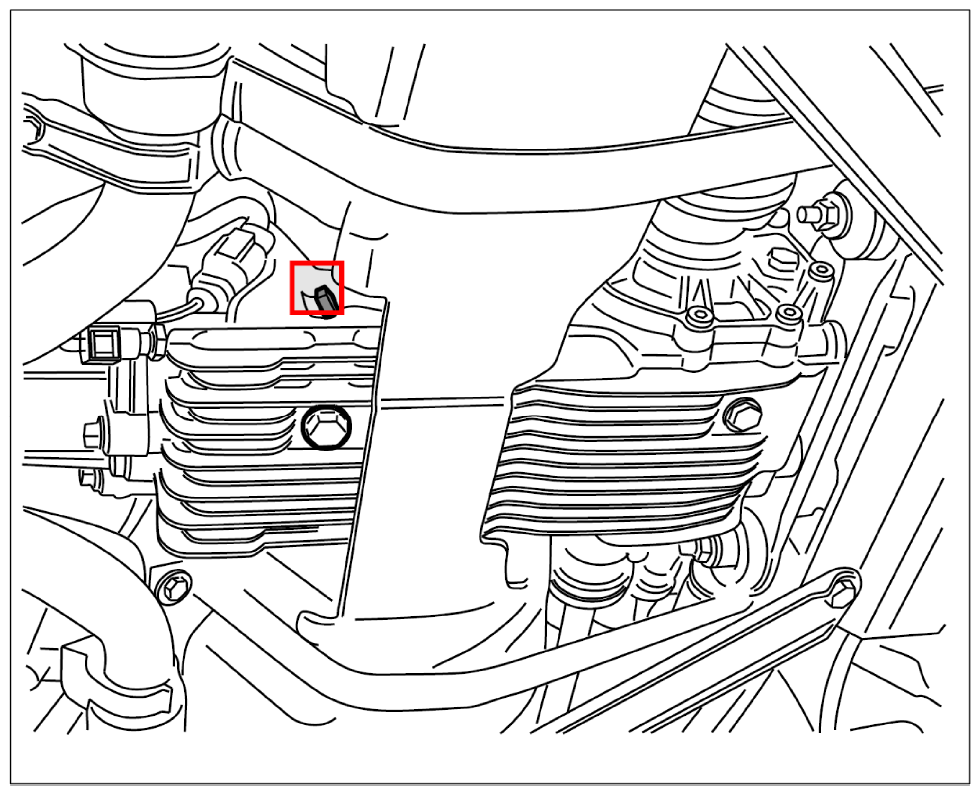

Oil filler screw for differential oil for front final drive |
|||||
| Oil filler screw for differential oil for front final drive | Tightening torque | 28 Nm (21 ft. lb.) | |||
|
Oil filler screw for differential oil for front final drive |
|||||

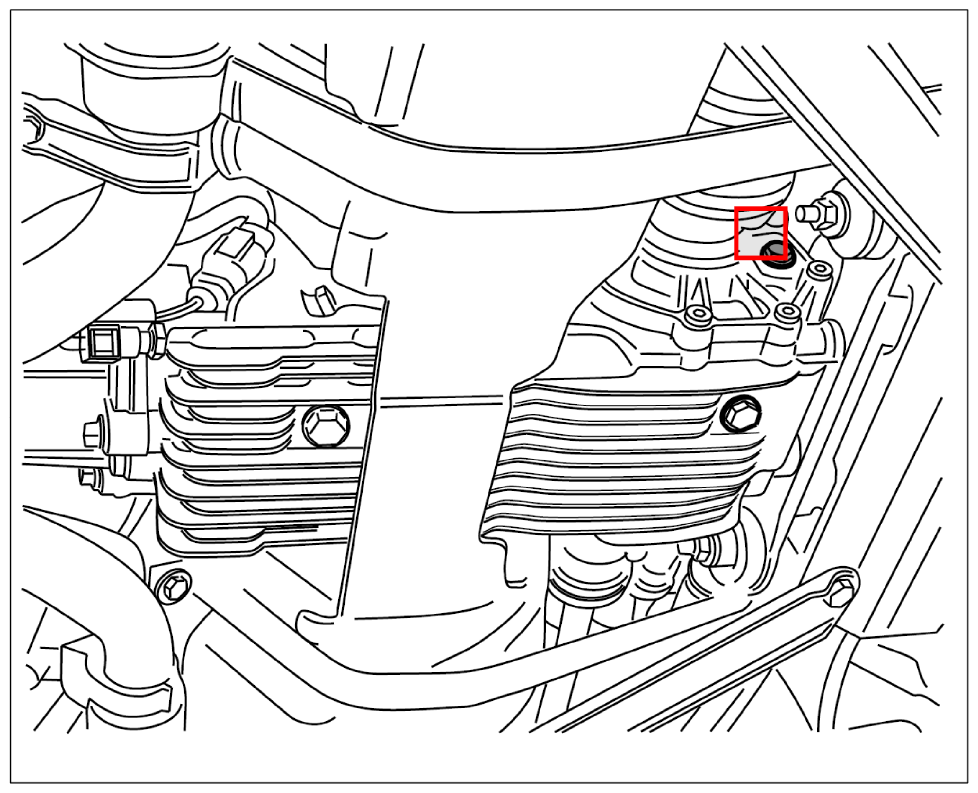

| Oil drain plug for clutch fluid for front final drive | Tightening torque | 28 Nm (21 ft. lb.) | |||
|
Oil drain plug for clutch fluid for front final drive |
|||||
| Oil filler screw for differential oil for front final drive | Tightening torque | 28 Nm (21 ft. lb.) | |||
|
Oil filler screw for clutch fluid for front final drive |
|||||
