Filling In Differential Oil For Front Final Drive

NOTE: Fill level too low
  • Risk of damage to components.

→ Do not start the engine.

→ Do not tow the vehicle.

  1. Clean oil drain plug and screw in with new sealing ring.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Oil drain plug for differential oil for front final drive   Tightening torque 28 Nm (21 ft. lb.)
    G09825433

    Oil filler screw for differential oil for front final drive
  2. Fill in transmission oil up to the bottom edge of the filler opening.
  3. Clean oil filler screw and screw in with a new seal.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Oil filler screw for differential oil for front final drive   Tightening torque 28 Nm (21 ft. lb.)

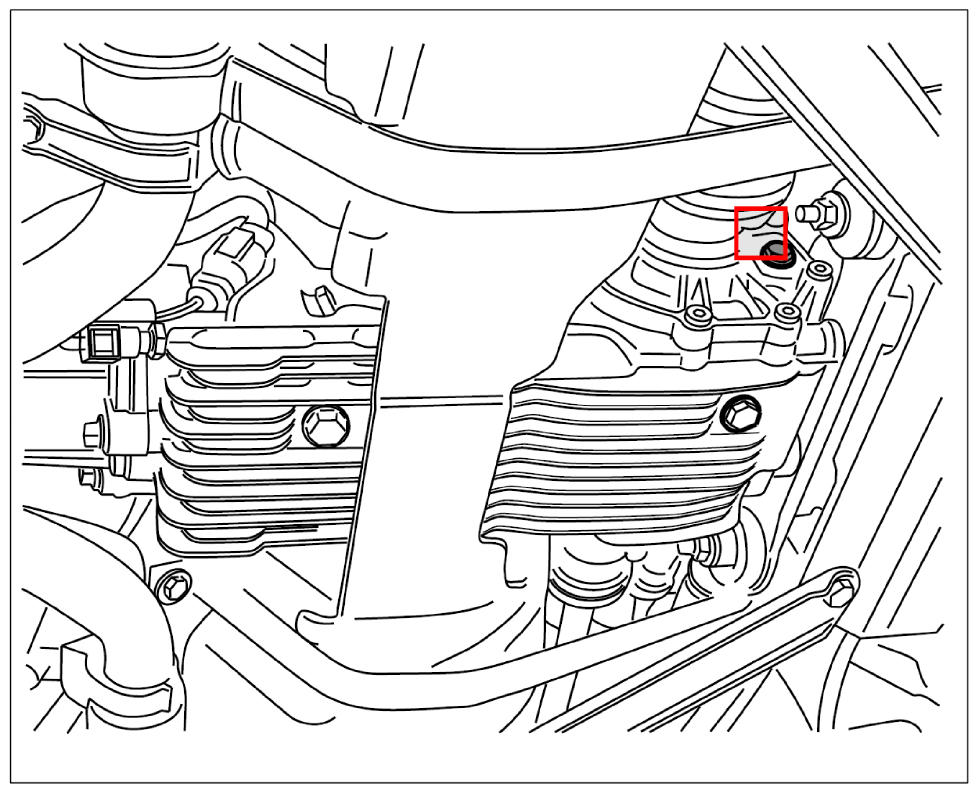

    G09825434

    Oil filler screw for differential oil for front final drive
