Draining Differential Oil For Front Final Drive

→ Do not start the engine.

→ Do not tow the vehicle.

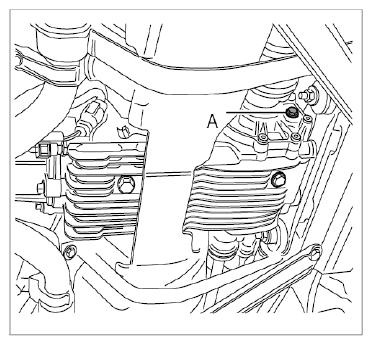

1. Unscrew oil filler screws -A-  .
   Fig 1: Identifying Differential Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Hot fluid

   • Danger of scalding

   → Let the fluid cool down.

   → Wear personal protective gear.

   WARNING: Hot fluid

   • Danger of scalding

   → Let the fluid cool down.

   → Wear personal protective gear.

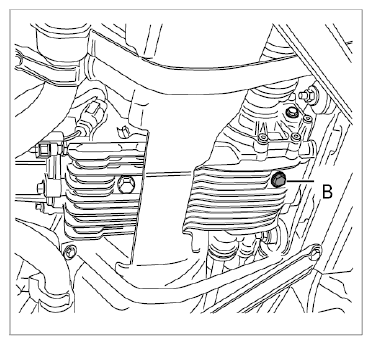

2. Unscrew oil drain plug -B-  and drain transmission oil.
   Fig 2: Identifying Differential Oil Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
